W01-M58-6105 Firestone Rubber Air Bags Style 255-1.5 Bending Machine Air Spring

Produktdetails:

Herkunftsort:	Guangzhou, China
Markenname:	GUOMAT
Zertifizierung:	ISO/TS16949:2009
Modellnummer:	2B6105

Zahlung und Versand AGB:

Min Bestellmenge:	5 Stück
Preis:	USD59.9-69.9/PC
Verpackung Informationen:	Stabiler Karton oder nach Kundenwunsch
Lieferzeit:	3-7 Werktage
Zahlungsbedingungen:	L/C, T/T, Western Union oder andere
Versorgungsmaterial-Fähigkeit:	1000 Stück/Woche

Kontakt

Ausführliche Produkt-Beschreibung

Modellname:	Airbags aus Gummi	Qualität:	100 % getestet
Transportpaket:	Starke Kartons	Kundendienst:	12 Monate
Typ:	Mit Gas gefüllt	Farbe:	Schwarz
Anwendung:	Beugmaschine	Garantie:	12 Monate
Hervorheben:	Firestone rubber air spring , bending machine air bag , W01-M58-6105 air spring

W01-M58-6105 Firestone Rubber Air Bags Style 255-1.5 Bending Machine Air Spring

Product Overview

Brand: GUOMAT

Model Number: 2B6105

Material: Rubber and Steel

Warranty: 12 Months

Type: Suspension Spring

Position: Rear

Sample: Available

Payment Term: T/T

Operation: Gas-filled

Port: Guangzhou

OE Interchange Numbers

Firestone Style 255-1.5
Firestone W01-M58-6105
Firestone W01 M58 6105
Firestone W01M586105
Firestone Style 255-1.5
Firestone WO1-M58-6105
Firestone WO1 M58 6105
Firestone WO1M586105

Technical Specifications

Mounting Flange
Flange Diameter	114 mm
Air Port	1/4 BSP
Threaded Holes	M8 x 1.25
Center Distance Between Threads	44 mm
External Dimensions
Maximum Outer Diameter	163 mm
Maximum Height	203 mm
Minimum Height	76 mm
Calculated Stroke	127 mm

Performance Data

Assembly Height (mm)	Volume@7 BAR (cu cm)	EFF Area @7 BAR(cm sq)	kN Force
175	2048	86	2.5	3.4	4.3	5.2	6.0
150	1786	107	3.2	4.3	5.3	6.4	7.5
125	1491	123	3.6	4.9	6.1	7.3	8.6
100	1163	134	4.0	5.3	6.7	8.0	9.4
75	803	143	4.2	5.7	7.1	8.5	10.0
60	623	156	4.7	6.2	7.8	9.4	10.9

Applications in Press Brake Machines

In press brake equipment, air springs are mainly used in the upper die clamping system, back gauge adjustment mechanism, and compensation device. They provide stable and controllable elastic support and stroke compensation through compressed air.

Tool Clamping Air springs provide uniform thrust to the upper die clamping mechanism, ensuring consistent, smooth, and damage-free clamping and release of the die, improving operational safety and die change efficiency.

Crowning/Compensation System When machine deformation occurs during bending, air springs provide precise lifting or supporting force to compensate for the deflection of the machine tool's longitudinal beam and worktable, improving the accuracy and consistency of bending angles.

Back Gauge Buffering and Positioning Air springs act as a buffer component for the back gauge, providing flexible support for the moving mechanism, improving positioning stability, reducing mechanical impact, and extending the life of guide rails and lead screws.

Vibration Damping and Energy Absorption Bending machines generate vibrations during high-speed operation. Air springs have excellent vibration absorption capabilities, which can reduce structural vibration, improve bending accuracy, and reduce mechanical noise.

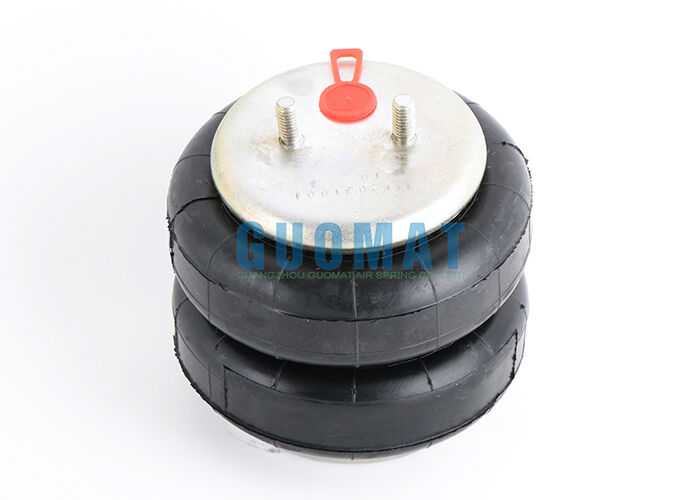

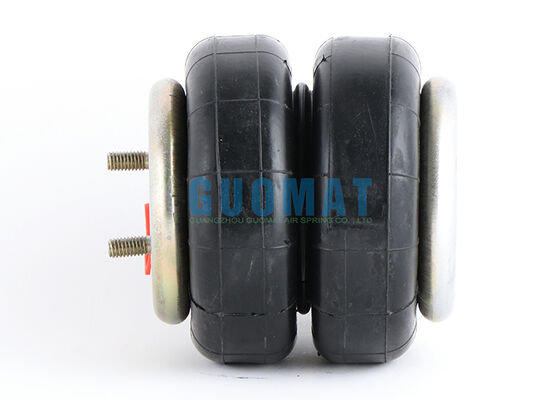

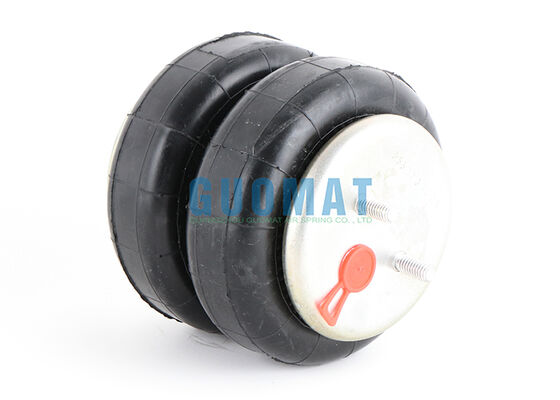

Product Images
