Herkunftsort: | CHINA |
Markenname: | GUOMAT |
Zertifizierung: | ISO/TS16949:2009 |
Modellnummer: | 3B4100 |
Min Bestellmenge: | 1PC |
---|---|
Verpackung Informationen: | starker Kartonkasten oder als Kundenbedarf |
Lieferzeit: | 2-8 Arbeitstage |
Zahlungsbedingungen: | T/T, Western Union, Paypal oder andere |
Versorgungsmaterial-Fähigkeit: | 1000pcs/Week |
Material: | Stahlabdeckung, Gummibälge | NORGREN: | 14 1/2 x 3 |
---|---|---|---|
Montagegewicht:: | 12,0 KILOGRAMM | Natürlicher Durchmesser: | 390 Millimeter |
Druck-Fähigkeit: | 0.2-0.8 m-PA | Designhöhe: | 100-350mm |
DURCHMESSER DER PLATTE: | 311 MILLIMETER | Dunlop: | 14 1/2 X 3 4 FALTE |
Markieren: | Firestone-Luft entspringt Gummibälge,Firestone-Luft-Frühlinge W01-R58-4100,14 1/2 x 3 Firestone-Luft-Frühlinge |

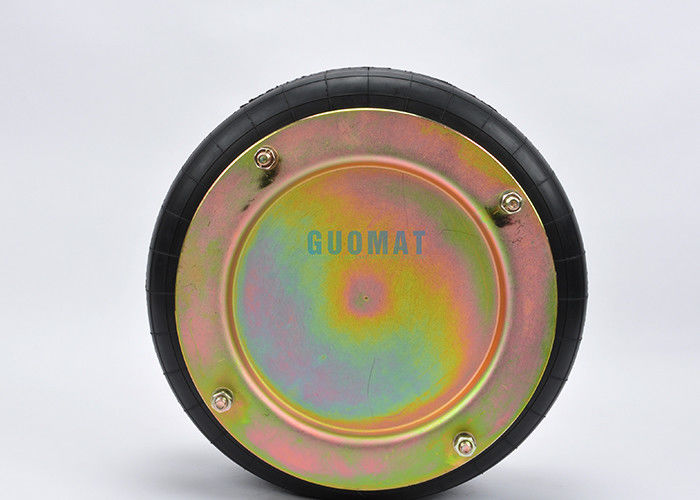

Firestone Air Springs W01-R58-4100 Rubber Bellows DUNLOP 14 1/2 X 3 4 PLY
GUOMAT NO. 3B4100 Cross OEM:
Rubber bellows:14 1/2 X 3
Firestone:W01-R58-4100
Firestone:W01 R58 4100
Firestone:W01R584100
Weight:12,00 KG
DUNLOP 14 1/2 X 3 4 PLY
GUOMAT NO. 3B4100 Data:
❶Nut/ Blind Nut
Top cover screw (nut) teeth: 4x M10
Top cover screw center distance: 283 mm
Bottom cover screw (nut) teeth: 4x M10
Bottom cover screw center distance: 283 mm
❷ air hole / air inlet / air connector
Air vent / air inlet: 1 / 2 BSP
❸ cover
Top cover diameter (width): 311MM
Bottom cover diameter (width): 311MM
❹Rubber bellows
Rubber bellows MAX diameter: 430 mm
Working stroke: 100 MM- 320 MM
Maximum height: 320 MM
Minimum height (compression height): 100 mm
Stroke height: 155 mm
❺ bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: two band loop
GUOMAT NO. | Model | Nominal Ø (inch) x convolutions | Maximum stroke (mm) | Air Port size |
1B 2 3/4x 1 | M/31021 | 2 3/4“ x 1 | 20 | G1/4 |
2B 2 3/4x 2 | M/31022 | 2 3/4“ x 2 | 45 | G1/4 |
3B 2 3/4x 3 | M/31023 | 2 3/4“ x 3 | 65 | G1/4 |
1B 4 1/2x 1 | M/31041 | 4 1/2“ x 1 | 140 | G3/8 |
2B 4 1/2x 2 | M/31042 | 4 1/2“ x 2 | 280 | G3/8 |
1B 6x 1 | M/31061 | 6" x 1 | 155 | G1/2 |
2B 6x 2 | M/31062 | 6" x 2 | 155 | G1/2 |
1B 8x 1 | PM/31081 | 8" x 1 | 95 | G3/4 |
2B 8x 2 | M/31082 | 8" x 2 | 185 | G3/4 |
1B 9 1/4x 1 | M/31091 | 9 1/4” x 1 | 105 | G3/4 |
2B 9 1/4x 1 | M/31092 | 9 1/4“ x 1 | 230 | G3/4 |
1B 12x 1 | M/31121 | 12" x 1 | 105 | G3/4 |
2B 12x 2 | M/31122 | 12" x 2 | 215 | G3/4 |
3B 12x 3 | M/31123 | 12" x 3 | 315 | G3/4 |
