Goodyear Rubber Air Spring 1B12-318 Firestone Air Bags Replacement W01-M58-6011

Goodyear Rubber Air Spring 1B12-318 Firestone Air Bags Replacement W01-M58-6011

  • Goodyear Rubber Air Spring 1B12-318 Firestone Air Bags Replacement W01-M58-6011
  • Goodyear Rubber Air Spring 1B12-318 Firestone Air Bags Replacement W01-M58-6011
  • Goodyear Rubber Air Spring 1B12-318 Firestone Air Bags Replacement W01-M58-6011
  • Goodyear Rubber Air Spring 1B12-318 Firestone Air Bags Replacement W01-M58-6011
  • Goodyear Rubber Air Spring 1B12-318 Firestone Air Bags Replacement W01-M58-6011
  • Goodyear Rubber Air Spring 1B12-318 Firestone Air Bags Replacement W01-M58-6011
Goodyear Rubber Air Spring 1B12-318 Firestone Air Bags Replacement W01-M58-6011
Produktdetails:
Herkunftsort: Mexiko
Markenname: GOODYEAR
Zertifizierung: ISO/TS16949:2009
Modellnummer: 3B8030
Zahlung und Versand AGB:
Min Bestellmenge: 6pcs
Preis: $99.9-159.9/pc
Verpackung Informationen: starke Kartonbox oder wie Kunden brauchen
Lieferzeit: 2-8 Arbeitstage
Zahlungsbedingungen: T/T, Western Union, l/c
Versorgungsmaterial-Fähigkeit: 1000 Prozent/Woche
Kontakt
Ausführliche Produkt-Beschreibung
Modellnummer: 1B12-318 Federmaterial: Gummi
Qualität: 100 % getestet Fuktion: Reduzieren Sie den Schock
Transportpaket: Starke Kartons HS -Code: 8708809000
After-Sales-Service: 12 Monate Typ: Gasgefüllt

Goodyear Rubber Air Spring 1B12-318 Firestone Air Bags Replacement W01-M58-6011

Product Description



The Goodyear Air Spring is a flexible rubber bladder supported by compressed air. It is essentially an inflatable rubber container that replaces traditional steel coil or leaf springs.


GOODYEAR: 1B12-318

GOODYEAR: 1B 12-318

GOODYEAR: 1B12 318

GOODYEAR: 578-91-3-301

GOODYEAR: 578 91 3 301

GOODYEAR: 578913301



Refer No.

Continental ContiTech: FS 330-11 CI 62743
Continental ContiTech: FS 330-11 3/4 M8
Continental ContiTech: FS 330-11 G3/4 M8
Continental ContiTech: FS 330-11 CI G3/4
Continental ContiTech: FS 330-11 CI G3/4 M8
Continental ContiTech: FS 330-11 CI / FS330-11CI / FS33011CI
Continental ContiTech Bellow: FS 330-11 / FS330-11 / FS33011
Fire-stone No.: W01-M58-6011 / W01 M58 6011 / W01M586011
Fire-stone Style: 19
Dunlop FR: 12"x1 S12100
Enidine: YI-1B12-318 / YI 1B12 318 / YI1B12318
Norgren:PM/31121 / PM 31121 / PM31121
Nominal (inch) x convolutions: 12″ x 1 / 12"x1 / 12x1


Specifications and Detailed Technical Parameters: Goodyear 1B12-318

Maximum diameter at 7 bar: 328mm
Maximum height: 140mm
Maximum travel: 89mm
Bead type: 3
Dim. A( Blind hole center): 158 mm
Dim. B: 73mm
Natural frequency at 5 bar: 2.5 fn( Hz)
Material: 2 layer standard line

About W01-M58-6011 Firestone Air Spring

Style 19 Blind nuts,1/4BSP W01-M58-6008
Double Convoluted Blind nuts,1/4BSP,bumper W01-M58-6373
Blind nuts,3/4BSP W01-M58-6011
Blind nuts,3/4BSP,bumper W01-M58-6372
Countersunk steel bead rings,40mm bolts,nuts,washers W01-M58-6975
Rubber bellows only W01-358-0134



Fore Table
Assembly Height(mm) Volume@7 BAR(cu cm) EFF Area@7 BAR(cm sq) kN Force
@3 BAR @4 BAR @5 BAR @6 BAR @7 BAR
130 6379 345 9.61 13.28 16.74 20.6 24.15
120 6004 398 11.24 15.49 19.48 23.85 27.87
110 5555 444 12.67 17.39 21.84 26.65 31.1
100 5093 482 13.85 18.9 23.74 28.92 33.71
90 4566 513 14.87 20.18 25.35 30.86 35.94
80 4048 539 15.67 21.16 26.59 32.38 37.69
70 3474 559 16.27 21.93 27.58 33.60 39.13
60 2923 574 16.68 22.48 28.26 34.45 40.15

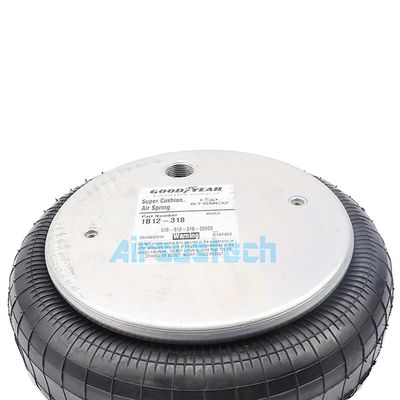

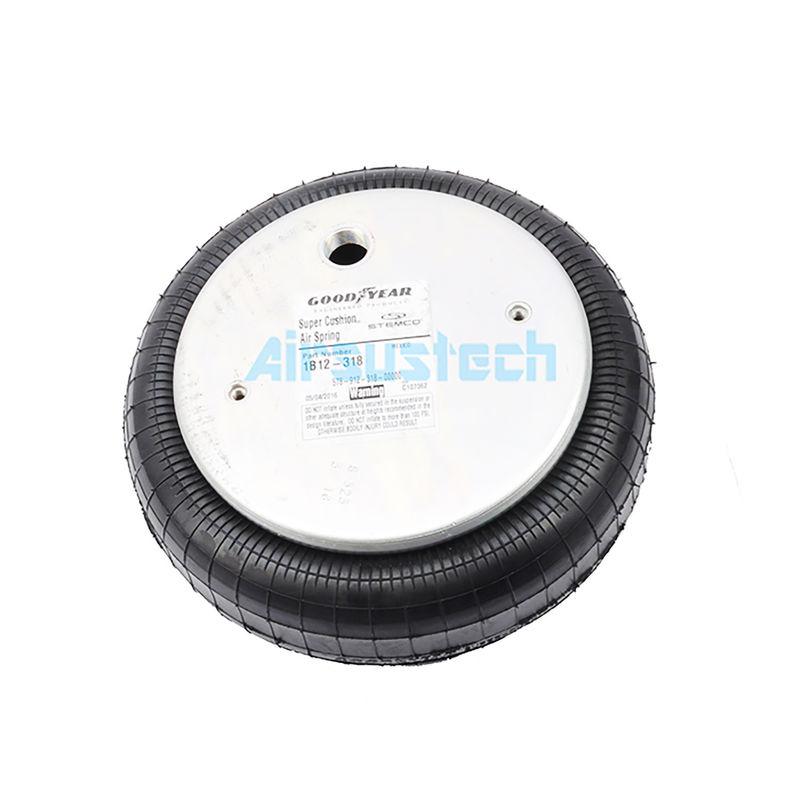

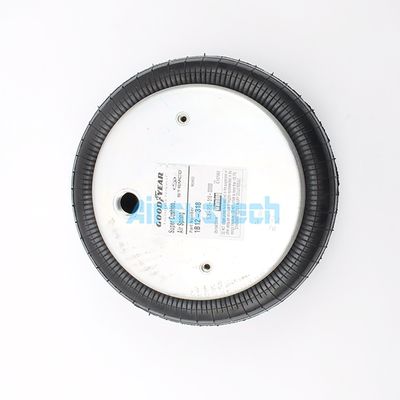

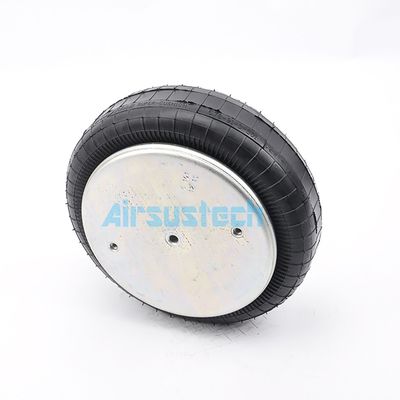

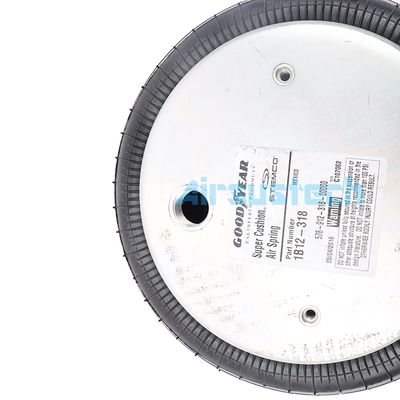

The related picture of 1B12-318
Goodyear Rubber Air Spring 1B12-318 Firestone Air Bags Replacement W01-M58-6011 0

Größe und Tag:

Luftsuspendierungsteile,

gewundener Luftfrühling,

Lufthelferfrühlinge
