W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device

W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device

  • W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device
  • W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device
  • W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device
  • W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device
W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device
Produktdetails:
Herkunftsort: Guangzhou, China
Markenname: GUOMAT
Zertifizierung: ISO/TS16949:2009
Modellnummer: 1B7451
Zahlung und Versand AGB:
Min Bestellmenge: 5pcs
Preis: USD49.9-59.9/PC
Verpackung Informationen: Starke Kartonbox oder als Kunden Voraussetzung
Lieferzeit: 3-7 Arbeitstage
Zahlungsbedingungen: L/C, T/T, Western Union oder andere
Versorgungsmaterial-Fähigkeit: 1000 Prozent/Woche
Kontakt
Ausführliche Produkt-Beschreibung
Modell: Gummi -Luftfeder Qualität: 100 % getestet
Garantie: 12 Monate Position: Industriemaschine
Typ: Gasgefüllt Firestone: W01-358-7451
Schlaganfall: 50 mm bis 140 mm Luftloch: 1/4nptf
Hervorheben:

Firestone Industrial Air Spring 1/4NPTF

,

Air Lift Suspension Web Tensioner

,

Industrial Air Spring with warranty

W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device
Product Attributes
Attribute Value
Model Rubber Air Spring
Quality 100% Tested
Warranty 12 Months
Position Industrial Machine
Type Gas-Filled
Firestone W01-358-7451
Stroke 50mm-140mm
Air Hole 1/4NPTF
Additional Information
Brand GUOMAT
Model No. 1B7451
Payment T/T, Letter of Credit, PayPal
Packing Moisture-proof carton (export standard)
OEM Numbers
  • Firestone Style Number: 110
  • Firestone Part Number: W01 358 7451
  • Firestone Part Number: W01-358-7451
  • Firestone Part Number: W013587451
  • Firestone Part Number: 7451
Specifications and Technical Parameters
Nut/Blind Nut: Threaded hole: 2X3/8-16UNC
The threaded hole distance of the cover plate: 44.5mm
Air Hole/Air Inlet/Air Fittings: Air hole/air inlet: 1/4 NPTF
The center distance between the air hole and the threaded hole: 22.25mm
Cover Plate: Top plate diameter: 115mm
Diameter of the bottom cover: 115mm
Rubber Bellows: The rubber bellows maximum outer diameter: 205mm
Maximum height: 140mm
Minimum height: 50mm
Bumper Block: No bumper block
Belt Loop: Without
Force Table
Assembly Height(in.) Volume@100PSIG(in3) Pounds Force @20PSIG @40PSIG @60PSIG @80PSIG @100PSIG
4.0 117 390 810 1240 1700 2160
3.0 91 490 1010 1540 2090 2650

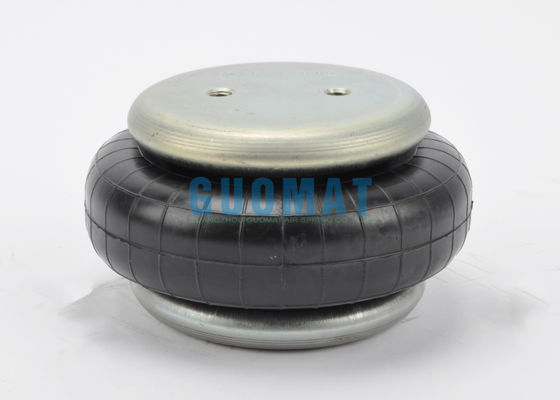

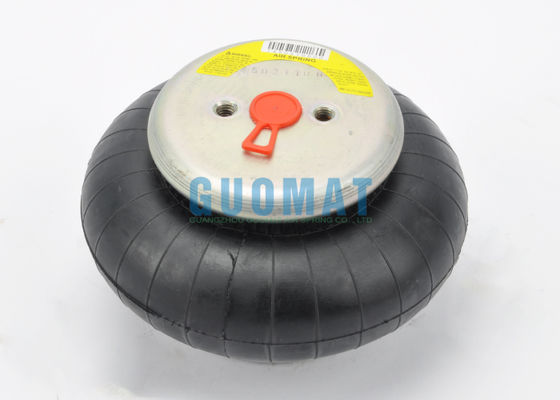

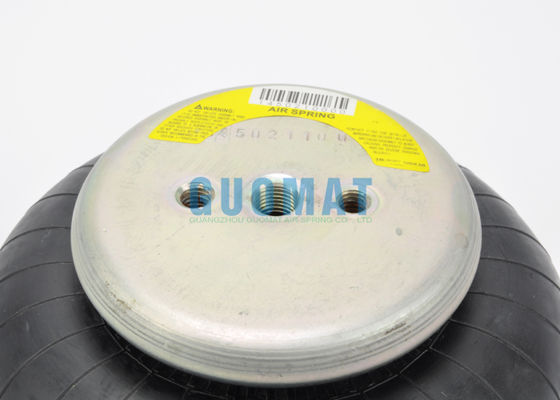

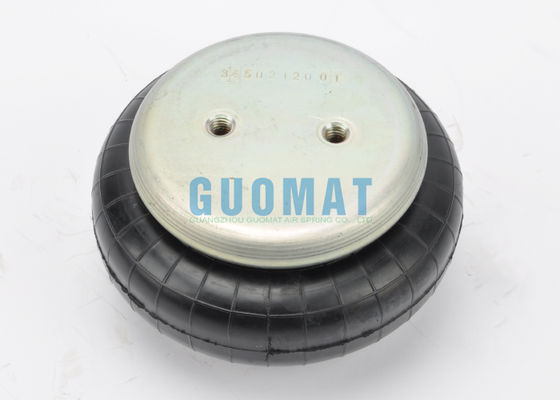

Product Image
W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device 0
