GUOMAT 120mm Single Convoluted Industrial Air Spring 1K176120

GUOMAT 120mm Single Convoluted Industrial Air Spring 1K176120

  • GUOMAT 120mm Single Convoluted Industrial Air Spring 1K176120
  • GUOMAT 120mm Single Convoluted Industrial Air Spring 1K176120
  • GUOMAT 120mm Single Convoluted Industrial Air Spring 1K176120
  • GUOMAT 120mm Single Convoluted Industrial Air Spring 1K176120
GUOMAT 120mm Single Convoluted Industrial Air Spring 1K176120
Produktdetails:
Herkunftsort: Guangdong, China
Markenname: GUOMAT
Zertifizierung: ISO/TS16949, ISO9001
Modellnummer: 1K176120
Zahlung und Versand AGB:
Min Bestellmenge: 5
Preis: $59.9-69.9/PC
Verpackung Informationen: Starke Kartonbox oder als Kunden Voraussetzung
Lieferzeit: 5-8 Arbeitstage
Zahlungsbedingungen: L/C, D/A, D/P, Western Union
Versorgungsmaterial-Fähigkeit: 1000 Prozent/Woche
Kontakt
Ausführliche Produkt-Beschreibung
Struktur: Einzeln verworren Elementname: Industrieluftfeder
Warenzeichen: Guomat Garantie: 1 Jahr
Typ: Gasgefüllt Natürliche Höhe: 120 mm
Luftloch: G1/4 Frühlingsgewicht: 2,1 kg
Hervorheben:

120mm industrial air spring

,

single convoluted air spring

,

GUOMAT 1K176120 air spring

1K176120 GUOMAT Single Convoluted Type 120mm Design Height Industrial Air Lift Bag
Product Specifications
Attribute Value
Structure Single Convoluted
Item Name Industrial Air Spring
Trademark GUOMAT
Warranty 1 Year
Type Gas-Filled
Natural Height 120mm
Air Hole G1/4
Spring Weight 2.1KG
Detailed Product Information
Parameter Description
Brand GUOMAT
Product Type Industrial Air Spring
Model Number 1K176120
Primary Material High-Strength Rubber
Operating Medium Compressed Air (Dry, Lubricated)
Temperature Range -30°C to +70°C
Pressure Range 2 - 7 bar
Mounting Type Single Convoluted
Application Industrial Machinery, Vibration Isolation, Suspension Systems, Precision Equipment Platforms
Technical Specifications
Nominal Diameter 0.7 MPa, Maximum OD Stroke Range Weight
Minimum Compression Height Safe Extended Height
136mm 195mm 55mm 130mm
Maximum outer diameter: 195mm
Top cover diameter: 105mm
Top cover threaded holes: 2 M8 x 15mm
Top cover threaded holes center-to-center distance: 70mm
Top cover air holes: G1/4
Bottom cover diameter: 105mm
Bottom cover threaded holes: 2 M8 x 15mm
Bottom cover threaded holes center-to-center distance: 70mm
Design height: 120mm
Cross Reference Numbers
GOODYEAR: 1B7-544
GOODYEAR: 1B 7-544
GOODYEAR: 1B7 544
GOODYEAR: 1B 7 544
GOODYEAR: 1B7544
GOODYEAR: 1B 7544
Enidine Inc. YI-1B7-544
Additional Reference Numbers
2B8-550 579-92-3-530
2B7-548 579-92-3-526
2B7-542 579-92-3-525
2B7-541 579-92-3-525
2B7-540 579-92-3-525
2B6-535 579-92-3-515
2B6-530 579-92-3-510
1B8-564 579-91-3-532
1B5-510 579-91-3-501
2B14-479 578-92-3-356
2B14-476 578-92-3-356
2B14-470 578-92-3-356
2B14-462 578-92-3-356
2B14-383 578-92-3-356
2B14-365 578-92-3-356
2B14-363 578-92-3-356
2B14-362 578-92-3-356
2B14-473 578-92-3-353
2B14-367 578-92-3-353
2B14-366 578-92-3-353
2B14-360 578-92-3-353
2B14-359 578-92-3-353
2B14-356 578-92-3-353
2B14-355 578-92-3-353
Key Advantages
  • Competitive pricing: Our prices are competitive and offer excellent value for money.
  • Excellent vibration isolation: We actively dampen and absorb over 90% of disturbing impact energy and vibration. This protects your high-value equipment from damage, reduces ambient noise, creates a safer workplace, and significantly improves end-product quality by eliminating environmental disturbances.
  • Excellent durability and wide performance range: Built for real-world applications. Our springs are made of high-strength rubber materials to withstand extreme industrial environments.
Product Images

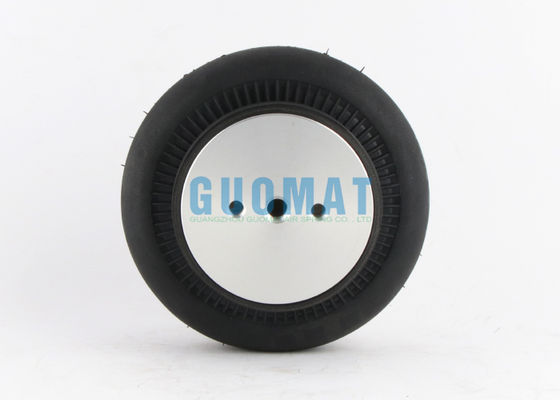

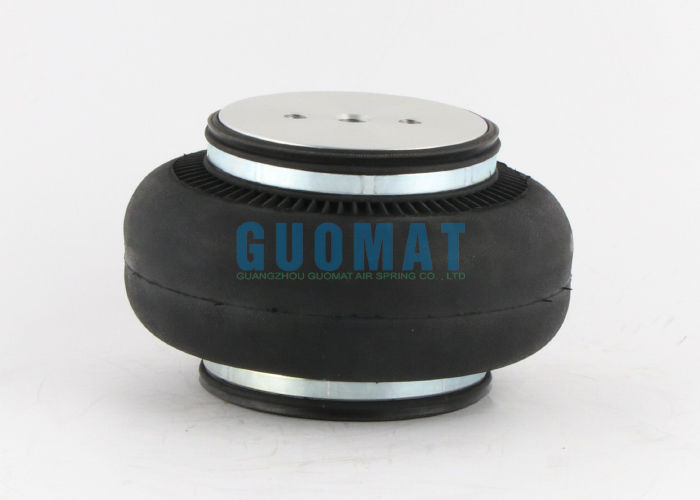

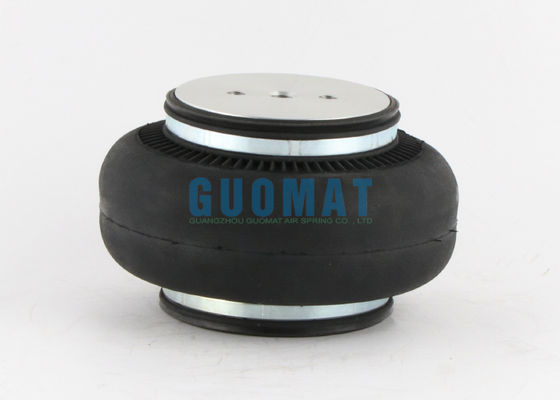

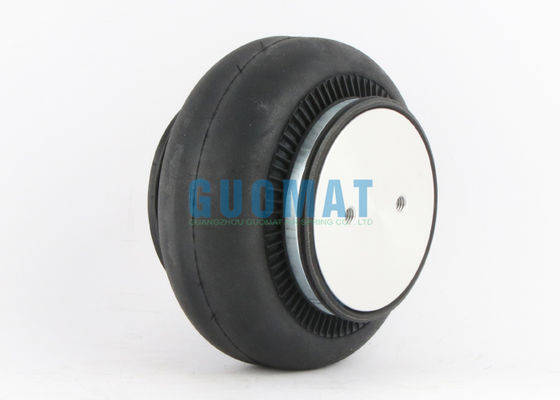

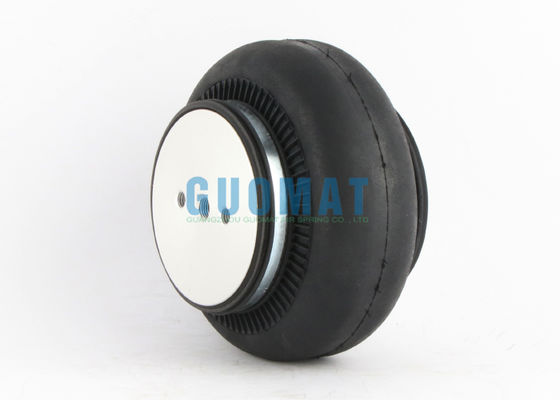

GUOMAT 120mm Single Convoluted Industrial Air Spring 1K176120 0 GUOMAT 120mm Single Convoluted Industrial Air Spring 1K176120 1
