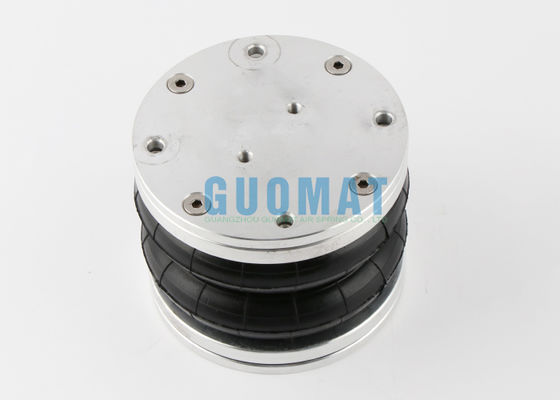

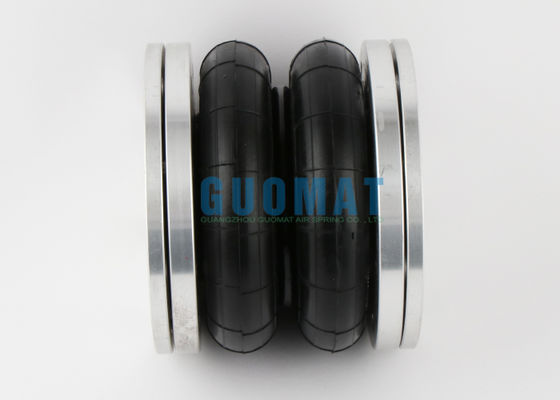

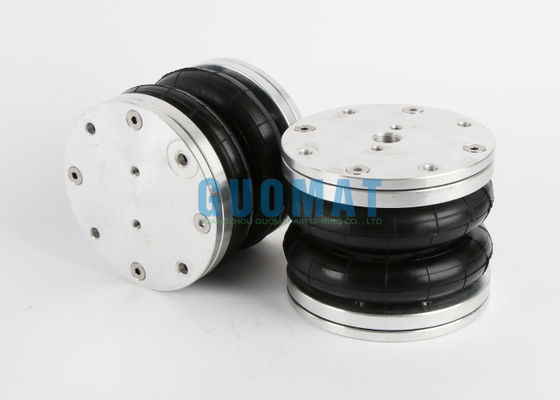

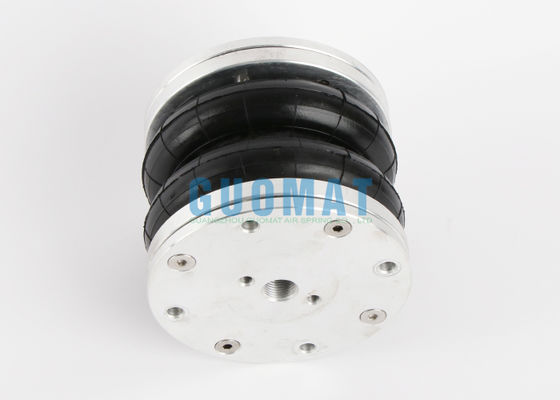

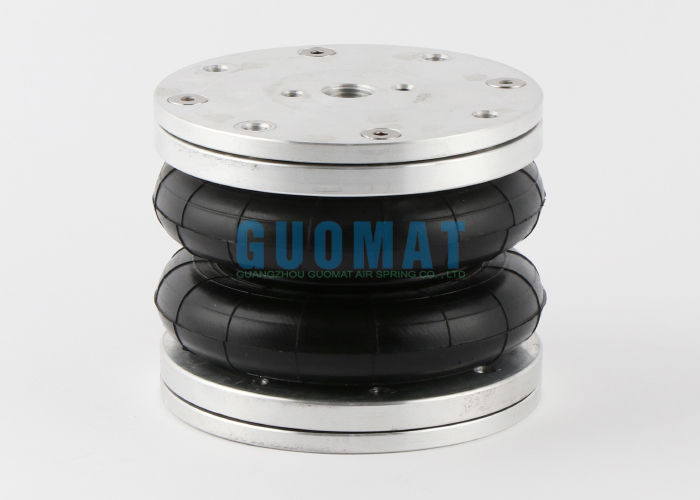

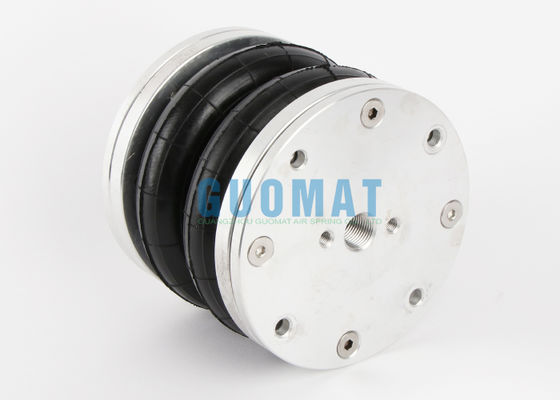

PM/31062 Norgren Air Bags W01-R58-4070 Firestone Industrial Air Spring Bellows 6''X2 Aluminum Part

Produktdetails:

Herkunftsort:	Guangzhou, China
Markenname:	GUOMAT
Zertifizierung:	ISO/Ts16949:2009
Modellnummer:	2B6X2P

Zahlung und Versand AGB:

Min Bestellmenge:	6pcs
Preis:	$89.9-99.9/pc
Verpackung Informationen:	Kartonverpackung oder Verpackung nach Kundenanforderungen
Lieferzeit:	5-8 Arbeitstage
Zahlungsbedingungen:	L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit:	10.000 pro Woche

Kontakt

Ausführliche Produkt-Beschreibung

Federmaterial:	Naturkautschuk	Qualität:	100 % getestet
Fuktion:	Reduzieren Sie den Schock	Garantie:	12 Monate
Typ:	Verwickelte Luftfeder	Contitech:	Fd 76-14
Farbe:	Schwarz	Norgren:	PM/31062
Hervorheben:	Norgren air spring bellows , Firestone industrial air spring , aluminum air spring bellow

PM/31062 Norgren Air Bags W01-R58-4070 Firestone Industrial Air Spring Bellows 6''X2 Aluminum Part

Product Attributes

Attribute	Value
Spring Material	Natural Rubber
Quality	100 % Tested
Fuction	Reduce Shock
Warranty	12 Months
Type	Convoluted Air Spring
Contitech	FD 76-14
Color	Black
Norgren	PM/31062

Product Description

PM/31062 Norgren Air Bags W01-R58-4070 Firestone Industrial Air Spring Bellows 6''X2 Aluminum Part

Specifications and Detail Technical Parameters

Weight: 2.1 kg
G1/2: max. 25 Nm
M8: max. 12 Nm
Nut/Blind Nut
Top cover screw (nut) teeth: 4 X M8
Bottom cover screw (nut) teeth: 4 X M8
Air vent / air inlet: G1/2
Top cover diameter (width): 153.5 mm
Bottom cover diameter (width): 153.5 mm
Material top and bottom plate: aluminum
Maximum diameter 7 bar: 175mm
Rubber bellows stroke: 80mm-195mm
Girdle Hoop: a belt hoop
Maximum load is 80 mm height and 8 bar: 1415 daN

Pneumatic Application - Static Characteristic Values

Height H(mm)	Forcr F (kN)						Vol V(I)
Height H(mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol V(I)
160	2.28	3.52	4.5	5.5	6.54	7.6	2
140	3.3	4.46	5.64	6.84	8.07	9.33	1.7
120	3.88	5.21	6.57	7.96	9.38	10.8	1.5
100	4.59	6.16	7.76	9.4	11.1	12.8	1.2

OE Manufacturer Number

Continental ContiTech: FD 76-14 1/2 M8
Continental ContiTech: FD 76-14 D1 G1/2
Continental ContiTech: FD 76-14 Dl G1/2 M8
Continental ContiTech: FD 76-14 DI G1/2 CR
Continental ContiTech: FD 76-14 DI CR G1/2
Continental ContiTech: FD 76-14 DICR / FD76-14DICR / FD7614DICR
Continental ContiTech Bellow: FD 76-14 / FD76-14 / FD7614
Firestone No.: W01-R58-4070 / W01 R58 4070 / W01R584070
Firestone Style: 6"x2
Dunlop FR: 6"x2 SP1646 (COMPOSITE)
Dunlop FR: 6"x2 SP2917 (ALUMINIUM)
Dunlop UK (Pneuride):A31330 02 01/A313300201
Norgren: PM/31062/PM 31062/PM31062
Nominal 0 (inch) x convolutions: 6"x2 / 6"x2 / 6x2
Parker: 6"x2 9109001A
YS-AIR: YS-160-2VS / YS 160 2VS / YS1602VS

1. Who are We?

We are located in Guangzhou, close to Guangzhou Baiyun Airport, with convenient transportation. We have a modern factory and advanced rubber air spring production equipment. Our products are primarily used for shock absorption in commercial vehicles, rail vehicles, and industrial machinery.

2. How do we ensure quality?

We always provide pre-production samples before mass production and conduct a final inspection before shipment.

3. What can you buy from us?

Industrial air springs, bus air springs, truck air springs, truck cab air springs, passenger car air spring shock absorbers, and air pumps.

4. Why should you buy from us instead of other suppliers?

We have specialized in the production and sale of air springs for nearly 20 years. We have also successfully entered the overseas automotive OEM market with competitive prices. We hope to be your sincere business partner and warmly welcome your contact.

5. What services do we provide?

Accepted delivery terms: CFR, CIF, EXW, CIP, FOB
Accepted payment currencies: USD, EUR, RMB, GBP
Accepted payment methods: T/T, L/C, PayPal, Western Union
Supported languages: English, Chinese, Russian, Korean
