6" x 3 Triple Air Spring FT 76-20 DI Contitech Industrial Air Spring PM/31063 Norgren

6" x 3 Triple Air Spring FT 76-20 DI Contitech Industrial Air Spring PM/31063 Norgren

  • 6" x 3 Triple Air Spring FT 76-20 DI Contitech Industrial Air Spring PM/31063 Norgren
  • 6" x 3 Triple Air Spring FT 76-20 DI Contitech Industrial Air Spring PM/31063 Norgren
6" x 3 Triple Air Spring FT 76-20 DI Contitech Industrial Air Spring PM/31063 Norgren
Produktdetails:
Herkunftsort: Guangdong, China
Markenname: GUOMAT
Zertifizierung: ISO/TS16949, ISO9001
Modellnummer: 3B6X3P
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: USD99.9-189.9/PC
Verpackung Informationen: Starke Kartonbox oder als Kunden Voraussetzung
Lieferzeit: 5-8 Arbeitstage
Zahlungsbedingungen: L/C, D/A, D/P, Western Union
Versorgungsmaterial-Fähigkeit: 1000 Prozent/Woche
Kontakt
Ausführliche Produkt-Beschreibung
Druckfähigkeit: 0.2-0.8 M-PA Balg Typ: Dreifaches gewundenes
Band: Ja Probe: Verfügbar
Ausstattungstyp: Direkter Austausch Luftanpassung: G1/2
Contitech: DI FT 76-20 Gewicht: 2 kg
Hervorheben:

6 inch industrial air spring

,

triple air spring with warranty

,

Contitech industrial air spring

6" x 3 Triple Air Spring FT 76-20 DI Contitech Industrial Air Spring PM/31063 Norgren
Product Description

Industrial air springs, also commonly known as air isolators or pneumatic actuators, are flexible, sealed containers that use the internal pressure of compressed air as an elastic medium to achieve functions such as support, cushioning, vibration isolation, lifting and height adjustment.

Product Details
Product Name: Air Spring
Description: Industrial Air Spring
Brand GUOMAT
Model No. 3B6X3P
MOQ: 1 PCS
Warranty: 12 Months
Material: Rubber
Package: Carton
Payment: L/C T/T West
Port of shipment NINGBO, SHANGHAI, TIANJING, GUANGZHOU, SHENZHEN
Shippment: By sea, By air, by DHL Fedex
Cross Reference Number
  • Continental ContiTech: FD 76-20 1/2 M8
  • Continental ContiTech: FD 76-20 Dl G1/2
  • Continental ContiTech: FD 76-20 Dl G1/2 M8
  • Continental ContiTech: FD 76-20 DI G1/2 CR
  • Continental ContiTech: FD 76-20 DI CR G1/2
  • Continental ContiTech: FD 76-20 DICR/FD76-20DICR/FD7620DICR
  • Continental ContiTech Bellow: FD 76-20/FD76-20/FD7620
  • Dunlop FR: 6"x2 SP2923 (ALUMINIUM)
  • Dunlop : A3 1330 03 01/A313300301
  • Norgren: PM/31063/PM 31063/PM31063
  • Nominal 0 (inch)xconvolutions:6"x3/6"x3/6x3
Dimensions
Maximum Diameter
168mm
Space Required
180mm
Minimum Height
109mm
Maximum Height
262mm
Total Stroke
153mm
Static Height
187mm
Effective Area at Static Height
350cm²
Bellows Weight
2.47kg
Pressure Specifications
Pressure P bar 3 4 5 6 7 8 Vol.V(I)
Height (mm) 260 1.75 2.46 3.19 3.95 4.74 5.56 3.2
220 2.69 3.65 4.63 5.64 6.67 7.74 2.9
180 3.51 4.71 5.93 7.17 8.43 9.71 2.4
140 4.27 5.69 7.12 8.6 10.1 11.7 1.8
100 5.55 7.32 9.1 10.9 12.8 14.7 1.1

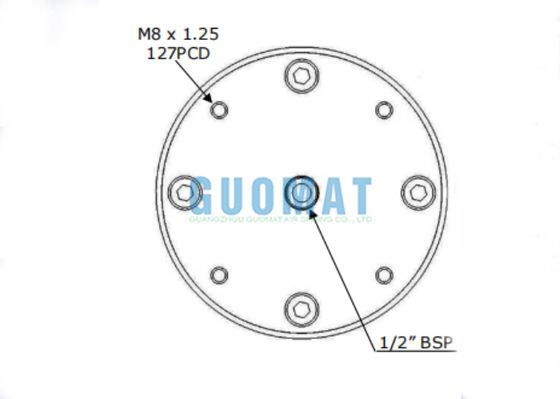

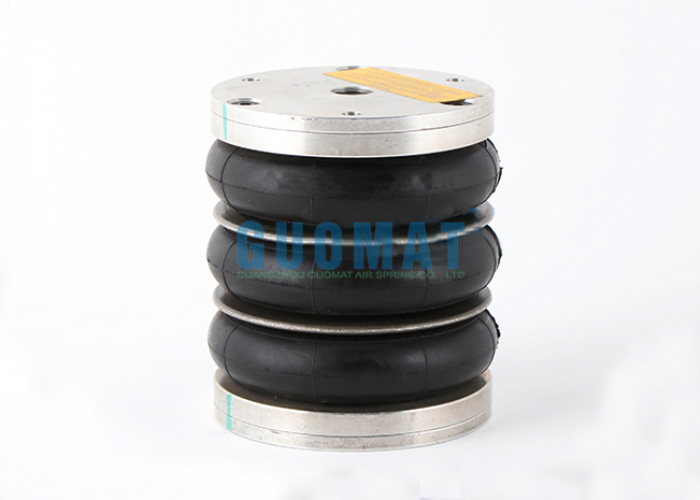

Product Images
6" x 3 Triple Air Spring FT 76-20 DI Contitech Industrial Air Spring PM/31063 Norgren 0

Größe und Tag:

Lufthelferfrühlinge,

Luftsuspendierungsteile,

gewundener Luftfrühling
