Replace W01-M58-7710 Firestone Air Spring 233C Style Convoluted Air Pillow With Flange

Produktdetails:

Herkunftsort:	Guangzhou, China
Markenname:	GUOMAT
Zertifizierung:	ISO/Ts16949:2009
Modellnummer:	2H330254

Zahlung und Versand AGB:

Min Bestellmenge:	6pcs
Preis:	$129.9-139.9/pc
Verpackung Informationen:	Kartonverpackung oder Verpackung nach Kundenanforderungen
Lieferzeit:	5-8 Arbeitstage
Zahlungsbedingungen:	L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit:	10.000 pro Woche

Kontakt

Ausführliche Produkt-Beschreibung

Geben Sie den Namen ein:	Verwickelte Luftfeder	Federmaterial:	Naturkautschuk
Qualität:	100 % getestet	Garantie:	12 Monate
Farbe:	Schwarz	Firestone:	W01-M58-7710
Konvolutionen:	2	Höhe:	254mm
Hervorheben:	Firestone air spring replacement , W01-M58-7710 air pillow , 233C style convoluted air spring

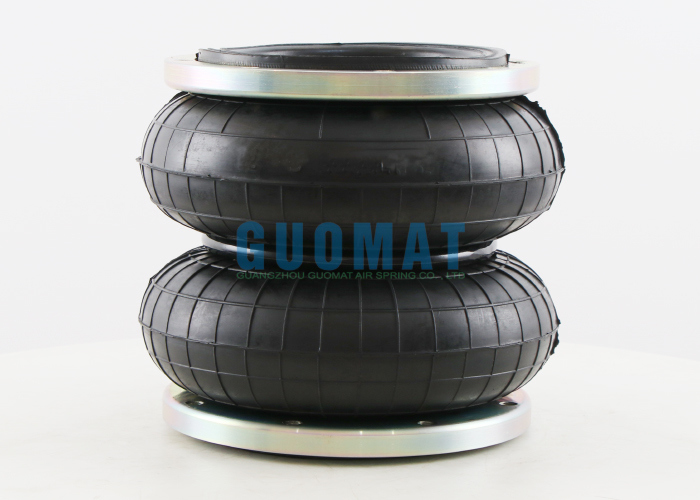

Replace W01-M58-7710 Firestone Air Spring 233C Style Convoluted Air Pillow With Flange

Product Information

Brand: GUOMAT
Part Number: 2H330254
Material: Rubber+Steel
Warranty: 1 Year
Type: Double Convoluted Air Spring with Flange Ring
Delivery Time: 2-7 Working Days
Payment Methods: Bank Card, PayPal, Western Union
Shipping Methods: International Express, Air, Ocean, Railway, Truck

OE Manufacturer Numbers

FIRESTONE: W01-M58-7710

FIRESTONE: W01M587710

FIRESTONE: W01 M58 7710

CARDI: 58053300

VIBERTI: 128 118 102

ICEVO: 8194819

KASSBOHRER: 4.731.005.000

Technical Specifications

W01-M58-7710

MIN.HT: 200MM

OD: 358MM

SCREW SPECS: M8X1.0

QTY/SIDE: 12PCS

FD: 308MM

SCREW C/C: 286MM

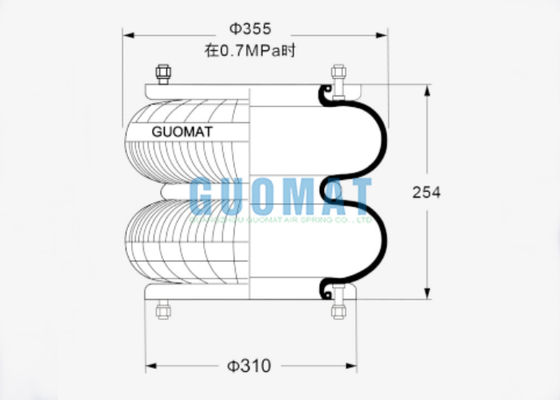

GUOMAT 2H330254

Maximum outer diameter: 355mm

Natural height: 254mm

Cover diameter: 310mm

Effective diameter: 230mm

Minimum compressed height: 88mm

Maximum height: 290mm

Stroke: 202mm

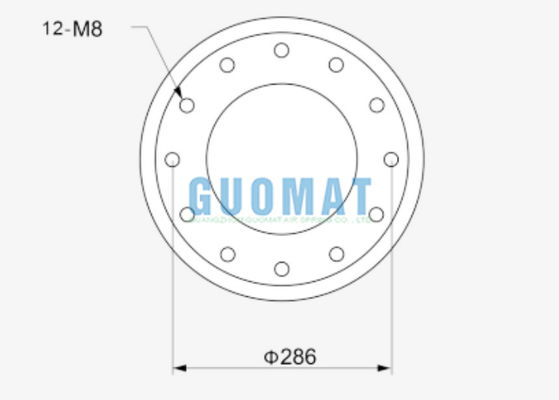

Screw: M8

Screw diameter center distance: 286mm

Carrying Capacity	0.2 MPa	0.3 MPa	0.4 MPa	0.5 MPa	0.6 MPa	0.7 MPa	0.8 MPa	Volume at 0.7MPa (dm3)
90 (mm)	1703	2471	3312	4105	4921	5762	6555	4.56
156 (mm)	1295	1938	2615	3293	3969	4633	5343	8.96
222 (mm)	981	1495	2010	2525	3037	3573	4117	12.58
254 (mm)	861	1317	1756	2222	2696	3166	3651	14.24
295 (mm)	601	937	1279	1991	1991	2360	2749	15.52
321 (mm)	395	653	909	1190	1471	1773	2098	16.56
