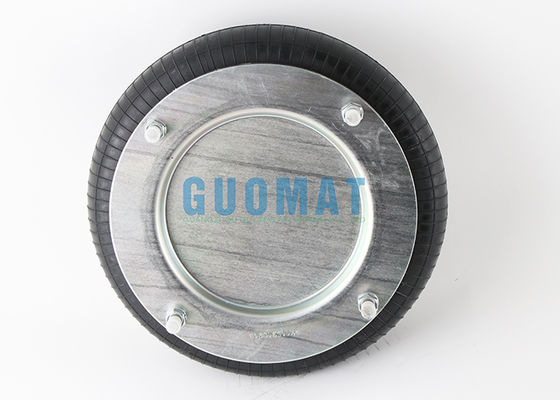

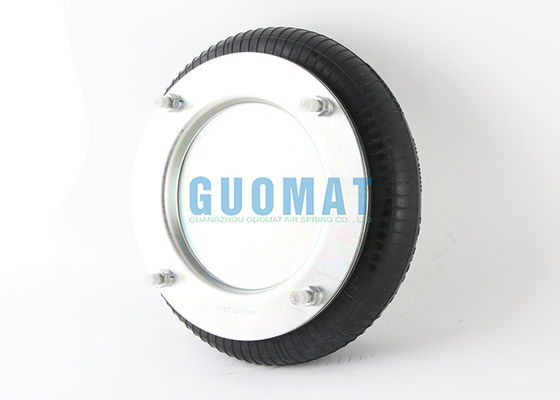

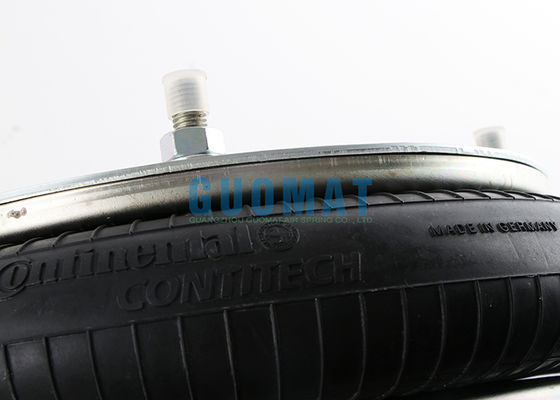

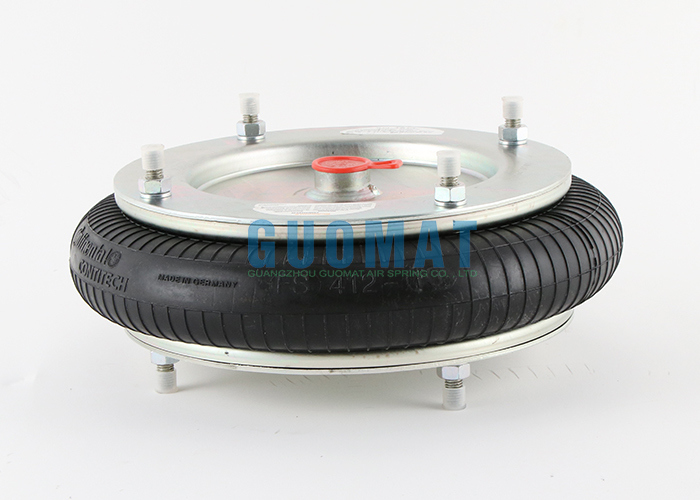

Original Contitech Rubber Air Spring FS 412-10 Single Convoluted Airbag Assembly

Original Contitech Rubber Air Spring FS 412-10 Single Convoluted Airbag Assembly

  • Original Contitech Rubber Air Spring FS 412-10 Single Convoluted Airbag Assembly
  • Original Contitech Rubber Air Spring FS 412-10 Single Convoluted Airbag Assembly
  • Original Contitech Rubber Air Spring FS 412-10 Single Convoluted Airbag Assembly
  • Original Contitech Rubber Air Spring FS 412-10 Single Convoluted Airbag Assembly
Original Contitech Rubber Air Spring FS 412-10 Single Convoluted Airbag Assembly
Produktdetails:
Herkunftsort: DEUTSCHLAND
Markenname: Contitech
Zertifizierung: ISO/TS16949:2009
Modellnummer: FS412-10
Zahlung und Versand AGB:
Min Bestellmenge: 5 Stück
Preis: USD179.9-199.9/PC
Verpackung Informationen: Starke Kartonbox oder als Kunden Voraussetzung
Lieferzeit: 3-7 Werktage
Zahlungsbedingungen: L/C, T/T, Western Union oder andere
Versorgungsmaterial-Fähigkeit: 1000 PCs/Woche
Kontakt
Ausführliche Produkt-Beschreibung
Artikelname: Gummi -Luftfeder Material: Gummi und Stahl
OEM: Ja Garantie: 12 Monate
anderer Name: Luftbällchen aus Gummi Contitech: FS412-10
Gummi Nr.: 12" x 1 Norgren: M/31121
Hervorheben:

Contitech rubber air spring

,

single convoluted airbag assembly

,

FS 412-10 air spring

Original Contitech Rubber Air Spring FS 412-10 Single Convoluted Airbag Assembly
Industrial air spring designed for industrial machine applications, featuring imported natural rubber construction and gas-filled operation.
Item Name Industrial Air Spring
Model No. FS412-10
Brand CONTITECH
Warranty 12 Months
Type Convoluted Air Spring
Service Offered OEM
Suspension System Air Spring Suspension
Applications For Industrial Machine
Material Imported Natural Rubber
Operation Gas-filled
Package Standard Packing Or Customized
Original CONTITECH Part Numbers
  • FS412-10
  • FS 412-10
  • FS412-10 DS
  • FS 412-10 DS
  • FS412-10 DS 67962
  • FS 412-10 DS 67962
Compatible Replacement Models
  • FIRETSONE Part Number: W01R584060 / w01R584060
  • FIRETSONE Part Number: W01-R58-4060 / w01-R58-4060
  • FIRETSONE Part Number: W01 R58 4060 / w01 R58 4060
  • FIRETSONE Style Number: 12X1 / 12''x1 / 12''X1
  • DUNLOP FR Part Number: 12''x1
  • DUNLOP FR Part Number: SP1540
  • DUNLOP UK(PNEURIDE): PNP305520120
  • DUNLOP UK(PNEURIDE): PNP 305520120
  • DUNLOP UK(PNEURIDE): PNP 30552 01 20
  • NORGREN Part Number: M/31121
  • NORGREN Part Number: M 31121
  • NORGREN Part Number: M31121
  • NORGREN(inch)xConvolutions: 12''X1 / 12X1 / 12''x1
  • PARKER Part Number: 9109044
  • PARKER Part Number: 12''x1 9109044
FS 412-10 Contitech Air Spring Technical Data

The FS 412-10 Contitech air spring is a single-convoluted type model. The top cover plate has a diameter of 260mm and four M10 bolts with a center-to-center distance of 232mm. The air vent is G1/2 and located in the center of the cover plate. The bottom cover plate also has a diameter of 260mm and four M10 bolts with a center-to-center distance of 232mm. The rubber bellows have a maximum outer diameter of 330mm. Maximum height is 150mm, Minimum height is 50mm.

Pressure P (bar) 3 4 5 6 7 8 Vol V(I)
height H(mm) 120 11.2 15.1 18.9 22.9 27 31.4 5.5
100 13.9 18.5 23.4 28.1 33.1 38.3 4.6
80 16.5 22.1 27.6 33.4 39.1 45 3.4
60 18.5 24.8 31 37.2 43.6 50 2.2
Original Contitech Rubber Air Spring FS 412-10 Single Convoluted Airbag Assembly 0 Original Contitech Rubber Air Spring FS 412-10 Single Convoluted Airbag Assembly 1
