W01-358-9030 Firestone Air Ride Springs 1/4 NPT Air Fitting Truck Air Suspension Parts

W01-358-9030 Firestone Air Ride Springs 1/4 NPT Air Fitting Truck Air Suspension Parts

  • W01-358-9030 Firestone Air Ride Springs 1/4 NPT Air Fitting Truck Air Suspension Parts
  • W01-358-9030 Firestone Air Ride Springs 1/4 NPT Air Fitting Truck Air Suspension Parts
W01-358-9030 Firestone Air Ride Springs 1/4 NPT Air Fitting Truck Air Suspension Parts
Produktdetails:
Herkunftsort: Guangdong, China
Markenname: GUOMAT
Zertifizierung: ISO/TS16949:2009
Modellnummer: 1T9030
Zahlung und Versand AGB:
Min Bestellmenge: 6 Stück
Preis: $79.9-99.9/pc
Verpackung Informationen: Stabiler Karton oder nach Kundenwunsch
Lieferzeit: 2-8 Werktage
Zahlungsbedingungen: L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 1000 Stück/Woche
Kontakt
Ausführliche Produkt-Beschreibung
Artikel: Luftfeder für LKW-Montage Material: Gummi+Stahl
Garantie: 1 Jahr Anwendung: Für LKW/Anhänger/halb Anhänger
Universelle Passform: Direkter Ersatz Typ: Luftfeder
Feuerstein: 1T15M-0 / W01-358-9030 Gewindeloch: 3/8-16UNC
Hervorheben:

Firestone air ride springs 1/4 NPT

,

truck air suspension parts

,

Firestone air springs with fitting

W01-358-9030 Firestone Air Ride Springs 1/4 NPT Air Fitting Truck Air Suspension Parts
The 1T9030 air ride spring is a heavy-duty reversible sleeve air spring designed for commercial truck air suspension systems. It helps maintain vehicle ride height, absorb road shock, and support dynamic load changes to ensure stable and comfortable operation in demanding transport environments.
Part Number:
1T9030
Material:
Rubber and Steel
Warranty:
1 Year
Application:
Truck Suspension
Function:
Reduce Vibration
Cross-Reference Part Numbers
Firestone Style Number
  • 1T15M-0
Firestone Assembly Numbers
  • W013589030
  • W01 358 9030
  • W01-358-9030
  • WO13589030
  • WO1 358 9030
  • WO1-358-9030
Related Part Numbers
  • Blind nuts, 1/4NPT: W013589030, W01 358 9030, W01-358-9030
  • Blind nuts, 1/4NPT, rubber bumper: W013589031, W01 358 9031, W01-358-9031
  • Blind nuts, 3/4NPT: W013589034, W01 358 9034, W01-358-9034
  • Blind nuts, 3/4NPT, rubber bumper: W013589036, W01 358 9036, W01-358-9036
  • Countersunk steel bead ring, 1 3/8 bolts, nuts, washers: W013589038, W01 358 9038, W01-358-9038
  • Integral studs, 1/4NPT: W013589035, W01 358 9035, W01-358-9035

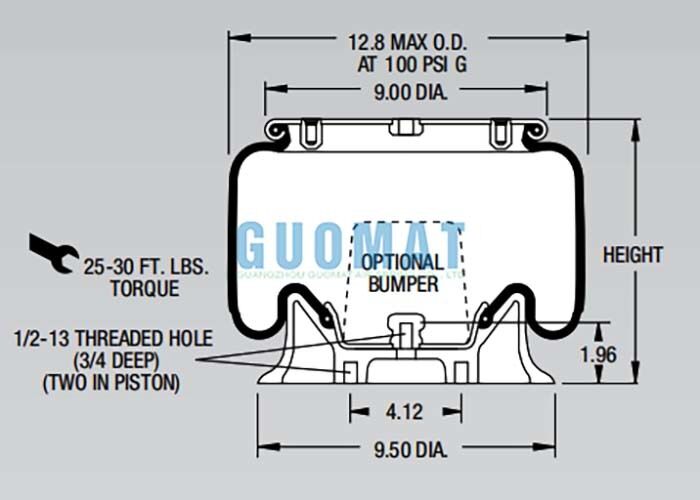

Technical Specifications
Top Cover Diameter:
9.00 inches
Top Cover Bolts:
Two 3/8-16 bolts, 6.20 inches center-to-center
Vent:
1/4 NPT, 2.88 inches center-to-center from threaded holes
Base Diameter:
9.50 inches
Base Height:
1.96 inches
Base Bolts:
Two 1/2-13 bolts, 4.12 inches center-to-center
Natural Height:
7.50 inches
Maximum Height:
13.00 inches
Minimum Height:
4.30 inches
Performance Data
Assembly Height (in.) Volume @ 100 PSIG (in³) @20PSIG @40PSIG @60PSIG @80PSIG @100PSIG
11 737 980 1920 2980 4120 5300
10 675 1180 2380 3550 4810 6130
9 606 1270 2540 3910 5290 6710
8 534 1300 2630 4080 5500 6950
7 462 1320 2690 4140 5570 7010
6 389 1350 2730 4170 5610 7070
5 314 1410 2840 4310 5840 7370
Benefits of Air Springs in Truck Suspension
  • Maintaining consistent chassis height
  • Reducing stress on leaf springs and frame components
  • Improving braking stability and tire contact
  • Enhancing driver comfort during long-distance hauling
Unlike conventional steel springs, air springs offer adjustable stiffness and better vibration damping, which is why they are widely adopted in commercial vehicles.
