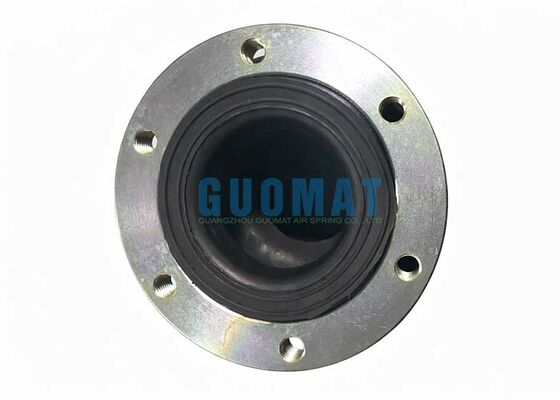

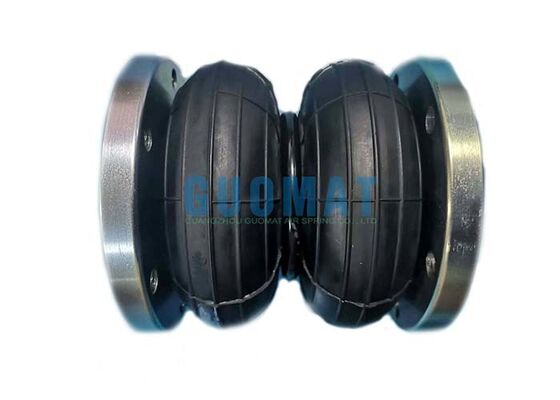

2H130142 GUOMAT Industrial Air Spring M10 Threaded Hole Convoluted Air Lift Bags 90mm Stroke

Produktdetails:

Herkunftsort:	Guangdong, China
Markenname:	GUOMAT
Zertifizierung:	ISO/TS16949:2009
Modellnummer:	1B7451

Zahlung und Versand AGB:

Min Bestellmenge:	6 Stück
Preis:	$89.9-99.9/pc
Verpackung Informationen:	Stabiler Karton oder nach Kundenwunsch
Lieferzeit:	2-8 Werktage
Zahlungsbedingungen:	L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit:	1000 Stück/Woche

Kontakt

Ausführliche Produkt-Beschreibung

Artikel:	Einzelne gefaltete Airbags	Garantie:	1 Jahr
Material:	Gummi + Stahl	Verpackung:	Brauner Karton
Zustand:	100 % brandneu	Nettogewicht:	2,2 kg
Packmaß:	252525 (CM)	Farbe:	Schwarz
Hervorheben:	GUOMAT industrial air spring M10 threaded , convoluted air lift bags 90mm stroke , industrial air spring with warranty

2H130142 GUOMAT Industrial Air Spring M10 Threaded Hole Convoluted Air Lift Bags 90mm Stroke

Product Overview

2H130142 GUOMAT Industrial Air Spring M10 Threaded Hole Convoluted Air Lift Bags 90mm Stroke

Product Information

Manufacturer: GUOMAT

Manufacturer Part Number: 2H130142

Single Convolution Air Spring
Natural Bellows
Blind Nuts
M10 Threaded Hole

Technical Parameters

Top flange diameter: 140mm

Top threaded holes: 6pcs XM10

Center distance between top threaded holes: 112mm

Bottom flange diameter: 140mm

Bottom threaded holes: 6pcs XM10

Center distance between bottom threaded holes: 112mm

Maximum outer diameter: 150mm

Natural height: 142mm

Minimum height: 72mm

Maximum height: 162mm

Stroke: 90mm

Carrying Capacity	Installation	0.2 MPa	0.3 MPa	0.4 MPa	0.5 MPa	0.6 MPa	0.7 MPa	0.8 MPa
72 mm	211	319	428	536	647	756	861	1.44
92 mm	176	266	357	448	540	631	722	0.66
112 mm	140	211	285	360	434	506	580	0.86
132 mm	104	158	217	274	332	387	444	0.95
142 mm	80	126	173	219	266	314	361	1.00
162 mm	14	35	55	5	96	117	140	1.14
172 mm					12	20	25	1.17
