1B5-502 Goodyear Single Convoluted Air Spring 3/8-16UNC Thread Hole Air Lift For Stone Crusher Machine

Produktdetails:

Herkunftsort:	Deutschland
Markenname:	GUOMAT
Zertifizierung:	ISO/TS16949:2009
Modellnummer:	1B5502

Zahlung und Versand AGB:

Min Bestellmenge:	6 Stück
Preis:	USD49.9-59.9/PC
Verpackung Informationen:	Stabiler Karton oder nach Kundenwunsch
Lieferzeit:	2-8 Werktage
Zahlungsbedingungen:	T/T, Western Union, L/C
Versorgungsmaterial-Fähigkeit:	1000 Stück/Woche

Kontakt

Ausführliche Produkt-Beschreibung

Modellname:	Gefaltete Luftfeder	Garantie:	12 Monate
Material:	Gummi + Stahl	Installation:	Schraubeninstallation
Windung:	einzel	Gutes Jahr:	1B5-502
Gewindeloch:	3/8-16UNC	Band:	Mit
Hervorheben:	Goodyear single convoluted air spring , Industrial air spring for stone crusher , 3/8-16UNC thread hole air lift

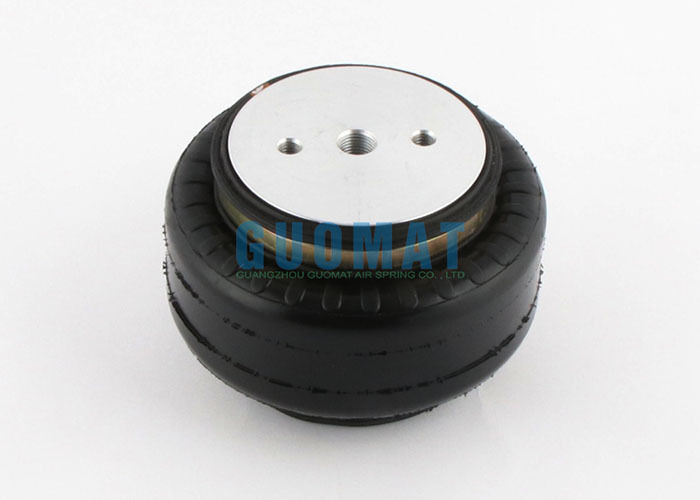

1B5-502 Goodyear Single Convoluted Air Spring

Model 1B5-502 with 3/8-16UNC thread hole air lift designed specifically for stone crusher machines, providing reliable vibration isolation and load support in heavy-duty crushing environments.

Product Specifications

Model Number	1B5502
Material	Steel and Rubber
Pressure Ability	0.2-0.8 MPa
Warranty	12 Months
Certification	ISO/TS16949:2009

OEM Cross Reference Numbers

Goodyear: 1B5-502, 1B 5-502
Enidine: YI-1B5-502, YI 1B5-502

Technical Data

Specification	Value
Air Inlet	3/4-14NPTF
Threaded Hole	3/8-16UNC
Top Cover Plate Diameter	85mm
Bottom Cover Plate Diameter	85mm
Center Distance Between Threaded Holes	44.5mm
Rubber Bellow Max Outer Diameter	150mm
Natural Height	70mm
Max Height	90mm
Min Height	55mm
Stroke	35mm

Application in Stone Crusher Machines

In heavy-duty crushing environments, stone crusher machines are subjected to strong vibration, impact loads, and uneven force distribution. The GUOMAT 1B5502 Air Spring (replacement for 1B5-502 Goodyear Single Convoluted Air Spring) is specifically engineered to provide reliable vibration isolation and load support under these harsh working conditions.

Using compressed air as the elastic medium, the air spring effectively absorbs shock generated during the crushing process, reducing mechanical stress on the machine frame and extending the service life of key components.

Key Benefits in Crusher Applications

Excellent Vibration Isolation: Minimizes vibration transmission from the crusher to the base structure, improving overall equipment stability
Impact Load Absorption: Handles sudden and heavy loads during stone crushing, protecting critical components from damage
Adjustable Height & Load Capacity: Air pressure can be adjusted to meet different working conditions and load requirements
Reduced Noise & Improved Working Environment: Compared to traditional metal springs, air springs significantly lower operational noise
Extended Equipment Lifespan: Reduces wear and tear on bearings, frames, and supporting structures

Typical Installation Positions

Between crusher base and support frame
Under vibration platforms
Integrated into feeder or screening support systems

The GUOMAT 1B5502 (1B5-502) with 3/8-16UNC thread hole ensures easy installation and compatibility with various stone crusher models, making it an ideal solution for mining, construction, and aggregate processing industries.
