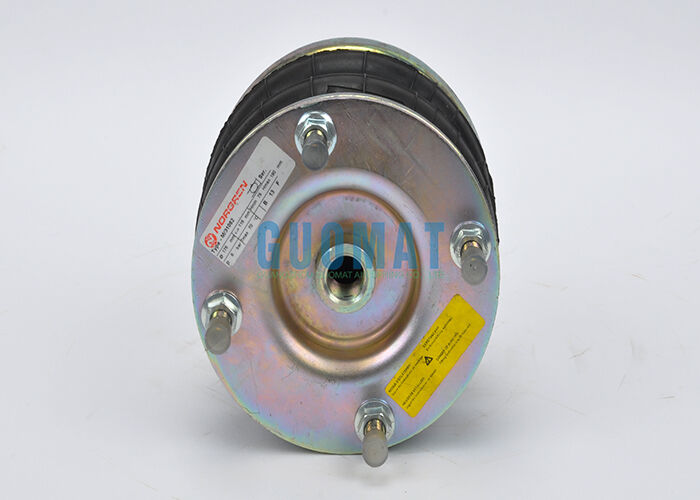

6" Diameter Norgren Air Spring M/31062 Industrial Air Bellows For Spinning Machine

Produktdetails:

Herkunftsort:	Guangdong, China
Markenname:	NORGREN
Zertifizierung:	ISO/TS16949:2009
Modellnummer:	M/31062

Zahlung und Versand AGB:

Min Bestellmenge:	6 Stück
Preis:	verhandelbar
Verpackung Informationen:	Stabiler Karton oder nach Kundenwunsch
Lieferzeit:	2-8 Werktage
Zahlungsbedingungen:	T/T, Western Union, L/C
Versorgungsmaterial-Fähigkeit:	1000 Stück/Woche

Kontakt

Ausführliche Produkt-Beschreibung

Material:	Natürliches Rubber+Aluminum	Farbe:	Schwarz
Funktion:	Stoßdämpfung	Betrieb:	Mit Gas gefüllt
Produktname:	Norgren-Flügel	NORGREN:	M/31062
Zahl von Windungen:	2	Gewicht:	2,2 kg
Hervorheben:	6 inch Norgren air spring , industrial air bellow spinning machine , M/31062 air spring with warranty

Norgren M/31062 Industrial Air Spring

The Norgren M/31062 is a high-performance double convoluted industrial air bellows designed for vibration isolation, lifting, and tension control applications in spinning and textile machinery.

With a 6-inch nominal diameter and 115 mm stroke, this original Norgren air spring provides stable force output, smooth motion, and excellent shock absorption during continuous machine operation.

Widely used in spinning machines, winding systems, textile production lines, and other precision industrial equipment, the M/31062 air spring helps reduce vibration transmission, improve machine stability, and extend equipment service life. Its reinforced rubber bellows and steel mounting structure ensure reliable performance under long-term cyclic loading conditions.

Product Specifications

Technical Data

Top cover plate: 153.5 mm diameter with four M10 threaded holes (127 mm bolt center distance)
Bottom cover plate: 153.5 mm diameter with four M10 threaded holes (127 mm bolt center distance)
Air port specification: G1/2
Maximum outer diameter: 175 mm
Maximum height: 190 mm
Minimum height: 75 mm

Performance Data - Force and Spring Characteristics

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Force (Load) KN	2.7	3.7	4.7	5.7	6.7	7.8	2
Spring Rate N/cm	650	830	1015	1185	1360	1530
Natural Frequency f0 Hz	2.5	2.4	2.3	2.3	2.3	2.2

Performance Data - Height vs Pressure

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Height H(mm) 170	2.2	3	3.8	4.7	5.6	6.5	2.1
Height H(mm) 150	2.8	3.9	4.9	6	7.1	8.2	1.9
Height H(mm) 130	3.5	4.7	5.9	7.1	8.4	9.7	1.7
Height H(mm) 110	4.1	5.4	6.8	8.2	9.6	11.1	1.4
Height H(mm) 90	4.7	6.3	7.9	9.5	11.1	12.8	1.1

Cross-Reference Part Numbers

Continental ContiTech: FD 76-14 DS CR 70215

Continental ContiTech: FD 76-14 1/2 M10

Continental ContiTech: FD 76-14 DS G1/2

Continental ContiTech: FD 76-14 DS G1/2 CR

Continental ContiTech: FD 76-14 DS CR G1/2

Continental ContiTech: FD 76-14DS CR / FD76-14DSCR / FD7614DSCR

Continental ContiTech Bellow: FD 76-14 / FD76-14 / FD7614

Firestone: W01-R58-4053 / W01R58 4053 / WO1R584053

Firestone Style: 6" x2 / 6"x2 / 6x2

Dunlop FR: 6"x2 SP1482

Dunlop UK (Pneuride): PNP 30550 0112 / PNP30550 0112

GUOMAT: 2B6X2T

Product Images
