3B7330 Triple Convoluted Air Spring 157.5mm Center Distance Rubber Air Bellows

3B7330 Triple Convoluted Air Spring 157.5mm Center Distance Rubber Air Bellows

  • 3B7330 Triple Convoluted Air Spring 157.5mm Center Distance Rubber Air Bellows
  • 3B7330 Triple Convoluted Air Spring 157.5mm Center Distance Rubber Air Bellows
  • 3B7330 Triple Convoluted Air Spring 157.5mm Center Distance Rubber Air Bellows
  • 3B7330 Triple Convoluted Air Spring 157.5mm Center Distance Rubber Air Bellows
3B7330 Triple Convoluted Air Spring 157.5mm Center Distance Rubber Air Bellows
Produktdetails:
Herkunftsort: Guangdong, China
Markenname: GUOMAT
Zertifizierung: ISO/TS16949:2009
Modellnummer: 3B7330
Zahlung und Versand AGB:
Min Bestellmenge: 6 Stück
Preis: $79.9-89.9/pc
Verpackung Informationen: Stabiler Karton oder nach Kundenwunsch
Lieferzeit: 2-8 Werktage
Zahlungsbedingungen: T/T, Western Union, L/C
Versorgungsmaterial-Fähigkeit: 1000 Stück/Woche
Kontakt
Ausführliche Produkt-Beschreibung
Produktname: Gummi -Luftfeder Garantie: 12 Monate
Material: Gummi und Stahl Anderer Name: Gummiluft-Ballon
Druckfähigkeit: 0.2-0.8 M-PA Gewicht: 6,5 kg
Packmaß: 24*24*24 (cm) Konvolutionen: 3
Hervorheben:

triple convoluted air spring

,

rubber air bellow 157.5mm

,

air spring with center distance

3B7330 Triple Convoluted Air Spring
157.5mm Center Distance Rubber Air Bellows
Product Overview
Product Name: Rubber Air Spring
Brand: GUOMAT
Part Number: 3B7330
Material: Rubber and Steel
Warranty: 1 Year
Minimum Order: 1 piece
Application: Universal
Function: Lifting
Delivery Time: 3-7 Working Days
Technical Specifications
Top and Bottom Cover Diameter: 228mm
Center Distance of Threaded Holes: 157.5mm
Threaded Hole Size: M8
Maximum Outer Diameter: 325mm
Maximum Height: 430mm
Minimum Height: 110mm
Available Configurations
  • Rubber bellows only
  • With top plate and G1 air inlet (66mm eccentricity)
  • With top plate and G1/4 air inlet (73mm eccentricity)
  • With stainless steel plate and G3/4 air inlet (73mm eccentricity)
Performance Data
Height H (mm) 3 bar 4 bar 5 bar 6 bar 7 bar 8 bar Volume B(I)
3808.811.915.118.421.725.123.6
34010.714.418.222.025.929.821.6
30012.316.520.825.129.533.719.2
26013.718.222.927.632.336.916.6
22014.819.524.629.634.639.513.8
18015.921.126.531.837.242.410.7
14017.022.428.133.639.144.77.5
Key Advantages
  • Vibration Control: Absorbs shocks and reduces transmission to surrounding equipment
  • Adjustable Load Support: Air pressure can be adjusted to match different load requirements
  • Equipment Longevity: Reduces mechanical stress and extends the lifespan of machinery components
  • Noise Reduction: Provides quieter operation compared to metal springs or rigid mounts
Cross-Reference Compatibility: GUOMAT 3B7330 can replace Contitech FT330-29 and Contitech FT 330-29
Product Images

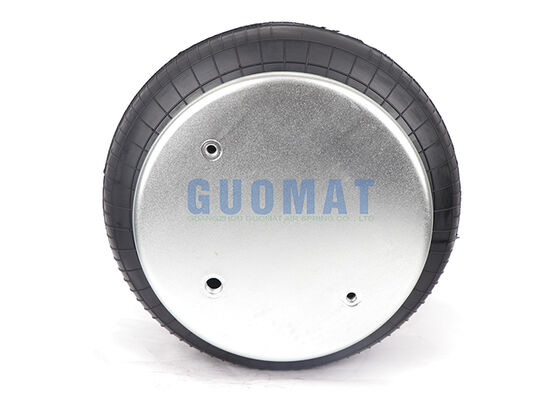

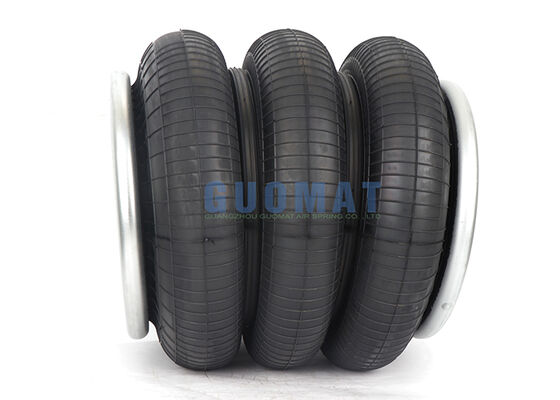

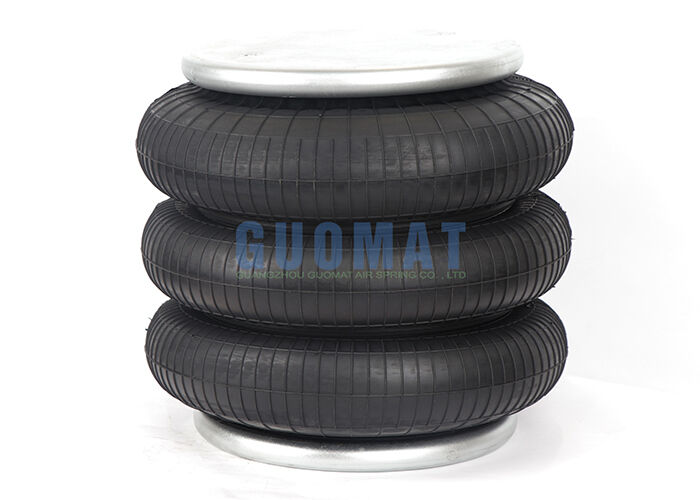

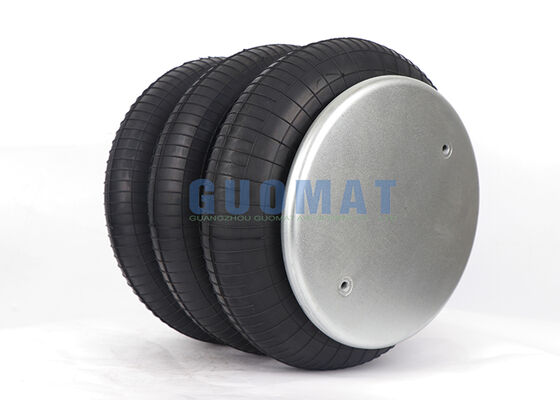

GUOMAT 3B7330 Triple Convoluted Air Spring - Front View GUOMAT 3B7330 Triple Convoluted Air Spring - Side View

Größe und Tag:

Doppelter gewundener Luft-Frühling,

dreifacher gewundener Luftfrühling,

industrielle Luftfrühlinge
