Firestone Air Spring Assembly W01-358-7761 Industrial Vibration Isolation Solution

Produktdetails:

Herkunftsort:	GUANGZHOU CHINA
Markenname:	GUOMAT
Zertifizierung:	ISO/TS16949, ISO9001
Modellnummer:	3H7761

Zahlung und Versand AGB:

Min Bestellmenge:	5 Stück
Preis:	verhandelbar
Verpackung Informationen:	Stabiler Karton oder nach Kundenwunsch
Lieferzeit:	3-7 Werktage
Zahlungsbedingungen:	L/C, T/T, Western Union oder andere
Versorgungsmaterial-Fähigkeit:	1000 Stück/Woche

Kontakt

Ausführliche Produkt-Beschreibung

Garantie:	Ein Jahr	OE-NR.:	Firestone W01-358-7761
Material:	Gummi+Stahl	Zustand:	Brandneue Luftquelle
Federtyp:	Gas gefüllt	Konvolutionen:	3
Typ:	Flanschverbindung	Anderer Name:	Stoßdämpfer
Hervorheben:	Firestone air spring assembly , industrial vibration isolation solution , rubber air spring with warranty

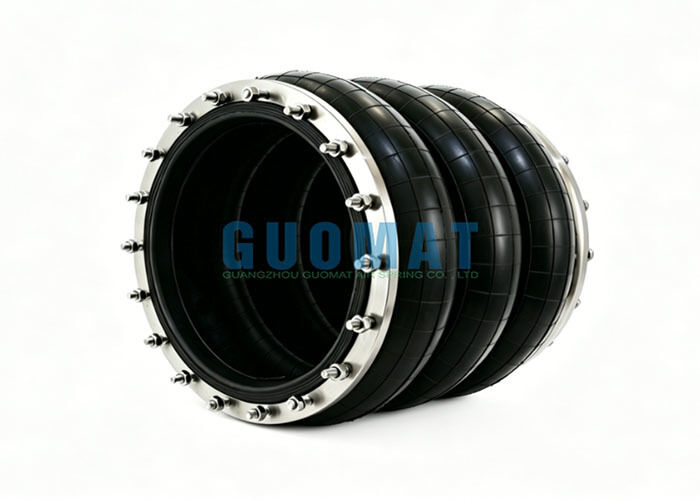

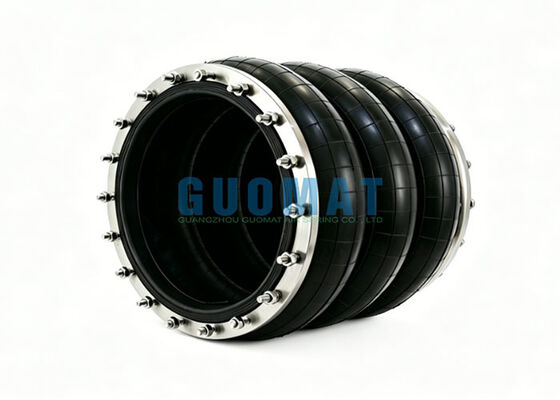

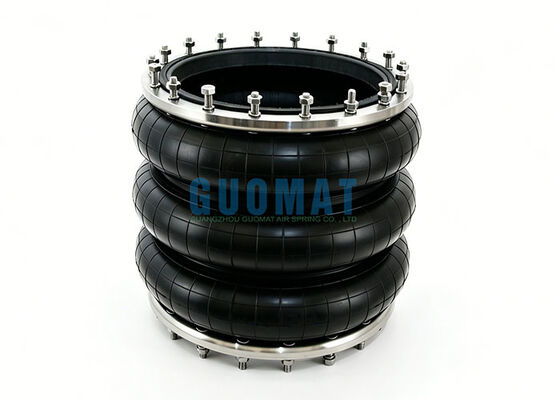

Firestone Air Spring Assembly W01-358-7761 Industrial Vibration Isolation Solution

Product Overview

The GUOMAT 3H7761 Flange Air Spring is engineered to provide exceptional vibration isolation, shock absorption, and load support for a wide range of industrial equipment. Designed as a direct replacement for Firestone W01-358-7761 (Style 312), this air spring assembly combines robust construction with reliable performance in demanding industrial environments.

Product Specifications

Type: Flange Air Spring
Brand: GUOMAT
Model No.: 3H7761
Warranty: 1 Year
Material: Rubber + Steel

Construction & Performance

Manufactured from premium rubber compounds reinforced with high-strength cord fabric, the GUOMAT 3H7761 delivers excellent resistance to fatigue, abrasion, and repeated compression cycles. The heavy-duty steel flange rings ensure secure mounting and long-term structural integrity, even under continuous operation.

Unlike traditional metal springs, the GUOMAT air spring utilizes compressed air as the elastic medium, allowing the system to adapt to varying loads while maintaining superior vibration isolation performance. This helps reduce machine noise, minimize structural stress, and extend the service life of surrounding components.

Cross-Reference Part Numbers

Firestone Style	312
Firestone	W013587761; W01 358 7761; W01-358-7761
Firestone	WO13587761; WO1 358 7761; WO1-358-7761

Technical Data

Bolt Specification	3/8-24 UNF (American Standard Fine Thread)
Number of Flange Ring Bolt Holes	18
Flange Ring Diameter	15.13 inches / 384.3 mm
Center Distance Between Bolts	13.81 inches / 350.7 mm
Airbag Outer Diameter	16.00 inches / 406.4 mm
Included Bolt Length	1.87 inches / 47.5 mm
Minimum Height	4.3 inches / 109.2 mm

Quality Assurance

Every GUOMAT 3H7761 air spring undergoes strict quality inspections and performance testing before shipment. Each unit is checked for air tightness, dimensional accuracy, and structural integrity to ensure reliable operation in industrial applications worldwide.

Whether used for machinery isolation, shock reduction, or pneumatic force generation, the GUOMAT 3H7761 provides a cost-effective and dependable alternative to the Firestone W01-358-7761 air spring assembly.
