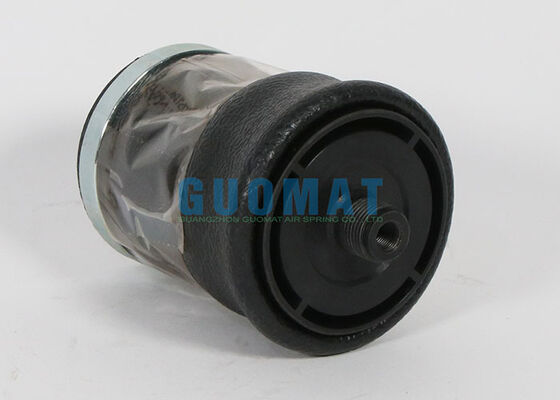

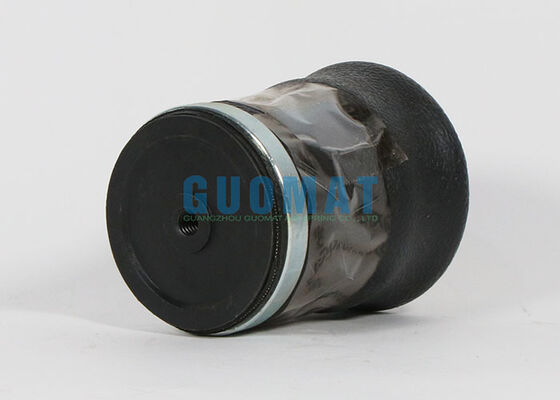

W02-358-7086 Firestone Sleeve Type Air Shock Absorber 2.4-7.25 in Stroke Truck Air Spring

W02-358-7086 Firestone Sleeve Type Air Shock Absorber 2.4-7.25 in Stroke Truck Air Spring

  • W02-358-7086 Firestone Sleeve Type Air Shock Absorber 2.4-7.25 in Stroke Truck Air Spring
  • W02-358-7086 Firestone Sleeve Type Air Shock Absorber 2.4-7.25 in Stroke Truck Air Spring
  • W02-358-7086 Firestone Sleeve Type Air Shock Absorber 2.4-7.25 in Stroke Truck Air Spring
  • W02-358-7086 Firestone Sleeve Type Air Shock Absorber 2.4-7.25 in Stroke Truck Air Spring
W02-358-7086 Firestone Sleeve Type Air Shock Absorber 2.4-7.25 in Stroke Truck Air Spring
Produktdetails:
Herkunftsort: Guangdong, China
Markenname: GUOMAT
Zertifizierung: ISO/TS16949:2009
Modellnummer: G7086
Zahlung und Versand AGB:
Min Bestellmenge: 6 Stück
Preis: $49.9-69.9/pc
Verpackung Informationen: Stabiler Karton oder nach Kundenwunsch
Lieferzeit: 2-8 Werktage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 1000 Stück/Woche
Kontakt
Ausführliche Produkt-Beschreibung
Arbeitstemperatur: -40℃+70℃ Typ der Aufhängung: Luftgefederter Stoßdämpfer für die Kabine
OE-NR: W02-358-7086 Federtyp: Luftfeder
Bruttogewicht: 0,7 Pfund. Farbe: Schwarz
Garantie: 1 Jahr Anderer Name: Luftbalg
Hervorheben:

Firestone sleeve type air shock absorber

,

truck air spring with 2.4-7.25 stroke

,

cab air shock absorber with warranty

W02-358-7086 Firestone Sleeve Type Air Shock Absorber 2.4-7.25 in Stroke Truck Air Spring
The core of an air spring in a truck cab is to replace steel coil springs with rubber airbags filled with compressed air. Its main function is to significantly absorb road bumps and vibrations, isolate impacts from the chassis, and provide the driver with a smooth, comfortable, "floating" driving environment. A key advantage is its adjustable damping performance; it can adjust the vehicle height and suspension stiffness by changing the air pressure according to road conditions or load variations, thereby reducing driver fatigue during long drives.
Product Specifications
BrandGUOMAT
TypeSleeve Type Air Spring
Model No.G7086
ApplicationFor Truck Cabin
MaterialPlastic
Warranty1 year
Alternative Part Numbers
  • FIRESTONE W02 358 7086
  • FIRESTONE W02-358-7086
  • FIRESTONE W023587086
  • FIRESTONE WO2 358 7086
  • FIRESTONE WO2-358-7086
  • FIRESTONE WO23587086
  • Cab Drawing Number: 7018 / NBD-10218
  • LINK MANUFACTURING LTD 1102-0025(FORD)
Technical Data
Top cover diameter2.84 inches
Top threaded hole3/8-16
Base piston height1.48 inches
Base piston width2.9 inches
Base bolts3/4-16, 1/8 NPT
Natural outer diameter2.9 inches
Maximum height7.25 inches
Minimum height2.4 inches
GUOMAT G-Reversible Sleeve Cab Air Shock Compatibility
GUOMATFIRESTONEGUOMATFIRESTONE
G7086W02-358-7086G7046W02-358-7046
G7079W02-358-7079G7001W02-358-7001
G7002W02-358-7002G7150W02-358-7150
G7201W02-358-7201G7132W02-358-7132
G7100W02-358-7100G7041W02-358-7041
G7059W02-358-7059G7058W02-358-7058
G7076W02-358-7076G7054W02-358-7054
G7098W02-358-7098G7040W02-358-7040
G7049W02-358-7049G7055W02-358-7055
Main Advantages of Installing Air Springs in Truck Cabs
  • Significantly improved comfort: Effectively filters road bumps and vibrations, significantly reducing driver fatigue during long drives.
  • Adjustable cab height: By changing the air spring pressure, it can easily accommodate drivers of different sizes or match trailers of different heights.
  • Protective cab and equipment: Reduces impact and resonance, extending the lifespan of components such as the cab suspension system and dashboard electronics.
  • Improved driving stability: Better maintains cab posture and reduces body roll when cornering or driving over uneven surfaces.
GUOMAT G7086 Firestone Sleeve Type Air Shock Absorber for truck cabin
