SP1B04 Phoenix Rubber Air Spring FS 40-6 1/8 M8 Contitech Air Suspension Isolator

SP1B04 Phoenix Rubber Air Spring FS 40-6 1/8 M8 Contitech Air Suspension Isolator

  • SP1B04 Phoenix Rubber Air Spring FS 40-6 1/8 M8 Contitech Air Suspension Isolator
  • SP1B04 Phoenix Rubber Air Spring FS 40-6 1/8 M8 Contitech Air Suspension Isolator
  • SP1B04 Phoenix Rubber Air Spring FS 40-6 1/8 M8 Contitech Air Suspension Isolator
  • SP1B04 Phoenix Rubber Air Spring FS 40-6 1/8 M8 Contitech Air Suspension Isolator
SP1B04 Phoenix Rubber Air Spring FS 40-6 1/8 M8 Contitech Air Suspension Isolator
Produktdetails:
Herkunftsort: Guangdong, China
Markenname: GUOMAT
Zertifizierung: ISO/TS16949:2009
Modellnummer: 1B4060
Zahlung und Versand AGB:
Min Bestellmenge: 6 Stück
Preis: $49.9-59.9/pc
Verpackung Informationen: Stabiler Karton oder nach Kundenwunsch
Lieferzeit: 2-8 Werktage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 1000 Stück/Woche
Kontakt
Ausführliche Produkt-Beschreibung
Arbeitstemperatur: -40℃+70℃ Produktname: Gummi -Luftfeder
OEM-Nr: Phoenix 1b20 Qualität: Hoch
Kompatibilität: Einfach auszutauschen Art der Waren: Gummi -Luftfeder
Artikelname: Luftsack aus Industriegummi Gewicht: 1 kg
Hervorheben:

Phoenix Rubber Air Spring M8

,

Contitech Air Suspension Isolator

,

FS 40-6 Rubber Air Spring

SP1B04 Phoenix Rubber Air Spring FS 40-6 1/8 M8 Contitech Air Suspension Isolator
GUOMAT 1B4060 is a high-performance single convoluted rubber air spring designed as a direct replacement for Phoenix SP1B04 and ContiTech FS 40-6 1/8 M8. Engineered for industrial vibration isolation, pneumatic actuation, and equipment suspension applications, this air spring provides excellent load-bearing capacity, shock absorption, and vibration control performance.
The 1B4060 design features a compact structure, making it ideal for installations where space is limited while maintaining reliable operational stability. Manufactured from premium natural rubber reinforced with high-strength cord fabric, the air spring offers exceptional durability and resistance to fatigue under continuous dynamic loading conditions.
Compared with traditional mechanical springs, it provides smoother operation, reduced noise transmission, and enhanced protection for sensitive machinery and production equipment.
Product Specifications
  • Brand: GUOMAT
  • Model Number: 1B4060
  • Material: Rubber, Steel
  • Warranty: 1 Year
Compatible Part Numbers
  • ContiTech: FS 40-6 CI G1/8 M8
  • ContiTech: FS 40-6 CI1/8 M8
  • ContiTech: FS 40-6 G1/8 M8
  • ContiTech: FS 40-6 1/8 M8
  • ContiTech Bellow: FS 40-6/FS40-6/FS406
  • Enidine: YM FS 40-6/YMFS40-6/YMFS406
  • Enidine: YM FS 40-6 CI G1/8 M8
  • Enidine: YI FS 40-6-000/YIFS40-6-000/YIFS406000
  • Enidine: YI FS 40-6 CI 1/8NPT 3/8-16UNC
  • Phoenix: SP 1 B 04/SP1B04
  • Goodyear: 1B5-800/1B5 800/1B5800
  • Goodyear Flex No.: 579-913-500/579 913 500/57991
  • Festo: EB-145-60/EB 145 60/EB14560
  • Enidine: YI-1B5-800/YI1B5 800/YI1B5800
  • Weforma: WBE100-E1/ WBE100 E1/ WBE100E1
  • Numatics: ASNS10-2-1/ASNS10 21/ASNS1021
  • Vigor: 1B 5001/1B5001
  • Vigor Bellow: 1B40-6/1B40 6/1B406
  • VKNTECH: 1B 4060/1B4060
  • VKNTECH Bellow: 1B40-6/1B40 6/1B406
  • EAA: 1E40-6/1E40 6/1E406
  • Volvo: AH-0188/AH 0188/AH0188
Technical Data
Cover plate diameter 88mm
Air Fitting G1/4
Threaded hole M8
Center distance between air vent and threaded hole in top cover plate 22mm
Center distance between threaded holes in bottom cover plate 22mm
Natural outer diameter 150mm
Design height 80mm
Minimum height 50mm
Maximum height 100mm
Industrial Equipment Benefits
The GUOMAT 1B4060 air suspension isolator effectively reduces machine vibration, minimizes transmitted shock loads, and improves operational stability. By isolating vibration sources from supporting structures, it helps extend equipment service life, improve product quality, and reduce maintenance costs. This makes it an ideal solution for modern industrial automation and precision manufacturing environments.

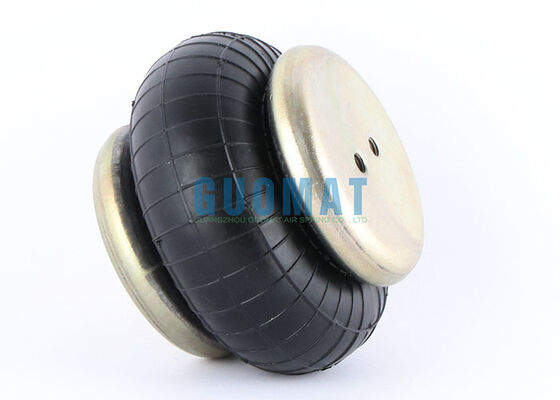

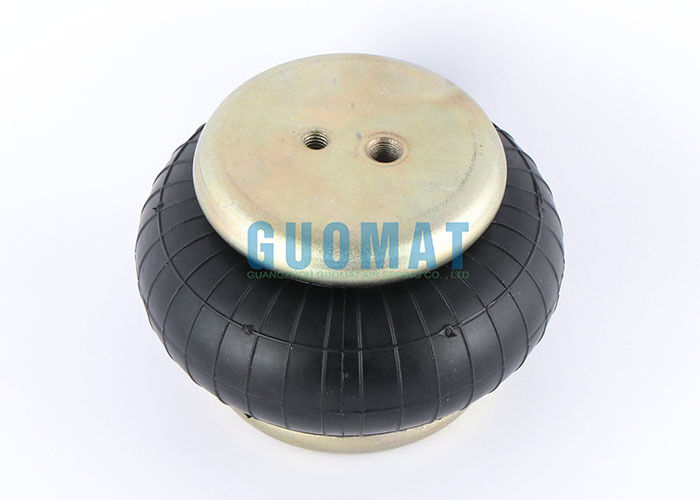

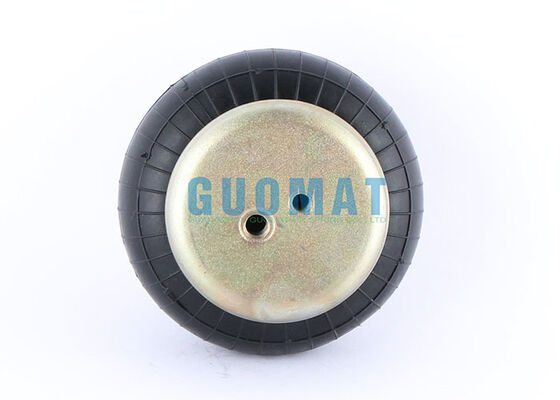

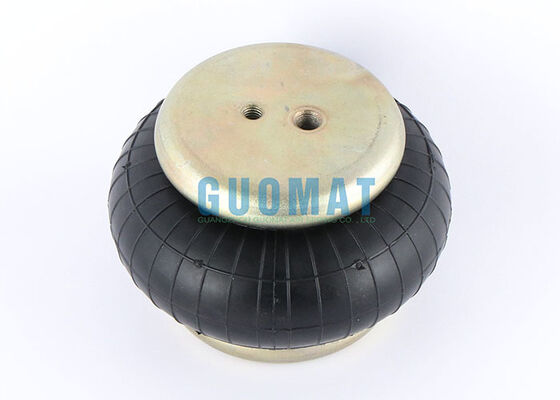

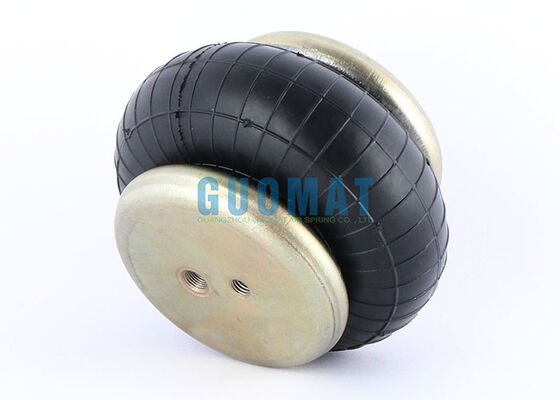

GUOMAT 1B4060 Air Spring detailed view showing construction and mounting features Close-up of SP1B04 air spring components and connection points Industrial installation of air suspension isolator in machinery application

Größe und Tag:

Doppelter gewundener Luft-Frühling,

dreifacher gewundener Luftfrühling,

industrielle Luftfrühlinge
