SP 2 B 22 R Double Convoluted Air Spring G 3/4 Air Inlet Big Travel Phoenix Rubber Bellows

Produktdetails:

Herkunftsort:	China
Markenname:	GUOMAT
Zertifizierung:	ISO/TS16949:2009
Modellnummer:	2B6330M12-G3/4

Zahlung und Versand AGB:

Min Bestellmenge:	6 Stück
Preis:	US$59.9-69.9/PC
Verpackung Informationen:	Stabiler Karton oder nach Kundenwunsch
Lieferzeit:	3-7 Werktage
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit:	1000 Stück/Woche

Kontakt

Ausführliche Produkt-Beschreibung

Name:	Gummi -Luftfeder	Probe:	Verfügbar
Qualität:	100 % geprüft	Mit Gewinde:	M12
Schichtzahl:	2 Faltung	Garantiezeit:	12 Monate
PHÖNIX:	SP 2 B 22 R	Durchmesser Bodenplatte:	225 Millimeter
Hervorheben:	Double Convoluted Air Spring , Rubber Bellows Air Spring , G 3/4 Air Inlet Spring

SP 2 B 22 R Double Convoluted Air Spring

G 3/4 Air Inlet Big Travel Phoenix Rubber Bellows

Product Overview

The GUOMAT double convoluted air spring is engineered to replace Phoenix SP 2 B 22 R rubber bellows in demanding industrial environments. Designed with a G 3/4 air inlet and large working stroke, this air spring delivers reliable load-bearing capability while providing exceptional vibration isolation and movement compensation.

Its double convoluted structure allows greater vertical travel than traditional rubber mounts, making it suitable for equipment that requires continuous motion, shock absorption, or variable load support. The flexible rubber bellows automatically adapt to changing operating conditions, helping protect machinery components from excessive vibration and impact forces.

Built with premium elastomer materials and reinforced cord construction, the air spring maintains stable performance under repetitive compression cycles. It is widely used in industrial automation systems, conveyors, lifting devices, machine tools, and vibration-sensitive production equipment.

Product Specifications

Product Type	Double Convoluted Rubber Air Spring
Brand	GUOMAT
GUOMAT Part Number	2B6330M12-G3/4
Reference Model	SP 2 B 22 R

Cross Reference Numbers

Phoenix: SP2B22R
Phoenix: SP 2B22R
Phoenix: SP 2B 22R
Phoenix: SP 2B 22 R

Technical Data

Top Cover Plate

Diameter: 225mm, 2 M12 threaded holes, center-to-center distance between bolts: 157.5mm

Vent specification: G3/4, center-to-center distance between vent and threaded holes: 73mm

Bottom Cover Plate

Diameter: 225mm, 2 M12 threaded holes, center-to-center distance between bolts: 157.5mm

Dimensions

Natural outer diameter: 325mm, Design height: 180mm, Maximum height: 280mm, Minimum height: 80mm

After-Sales Support

GUOMAT is committed to providing comprehensive after-sales service and technical support for every customer. Our experienced engineering team assists customers throughout the entire purchasing process, from product selection and cross-reference identification to installation guidance and maintenance recommendations.

Additional Services Include:

One-year warranty against manufacturing defects
Technical consultation before and after purchase
Cross-reference and interchange assistance
Installation and application guidance
Fast response to product inquiries and service requests
Global shipping and logistics support
Quality inspection reports available upon request

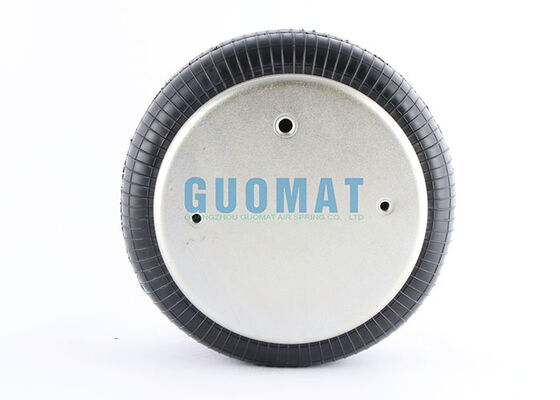

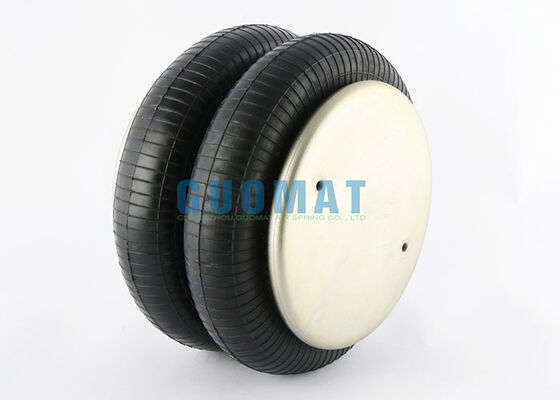

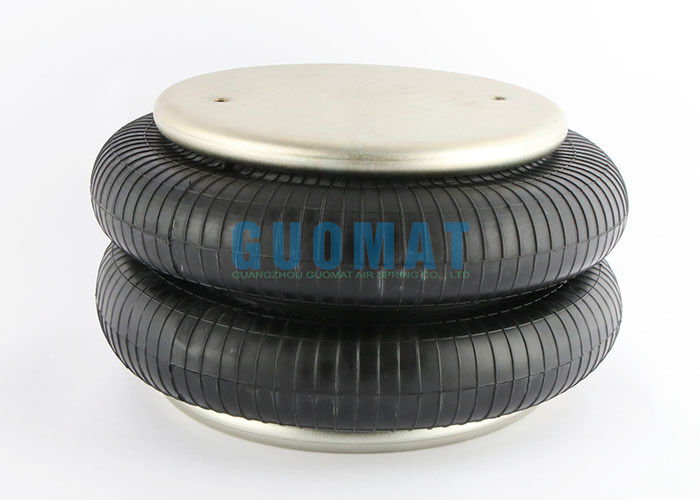

Product Images
