6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption

Produktdetails:

Herkunftsort:	China
Markenname:	GUOMAT
Zertifizierung:	ISO/TS16949:2009
Modellnummer:	2B6X2P

Zahlung und Versand AGB:

Min Bestellmenge:	6 Stück
Preis:	US$129.9-159.9/PC
Verpackung Informationen:	Stabiler Karton oder nach Kundenwunsch
Lieferzeit:	3-7 Werktage
Zahlungsbedingungen:	Western Union, T/T, D/P, D/A, L/C
Versorgungsmaterial-Fähigkeit:	1000 Stück/Woche

Kontakt

Ausführliche Produkt-Beschreibung

Name:	Gummi-Luftfeder	Windung:	Doppelt
OEM:	Akzeptabel	Garantie:	12 Monate Garantie
Ort des Ursprungs:	Guangdong, China	Transportpaket:	Karton
Bälge nummerieren:	6''X2	Contitech:	W01-R58-4070
Hervorheben:	Firestone Rubber Air Spring 6x2 , W01R584070 Air Spring Shock Absorption , FD 76-14 DI Contitech Equipment Air Spring

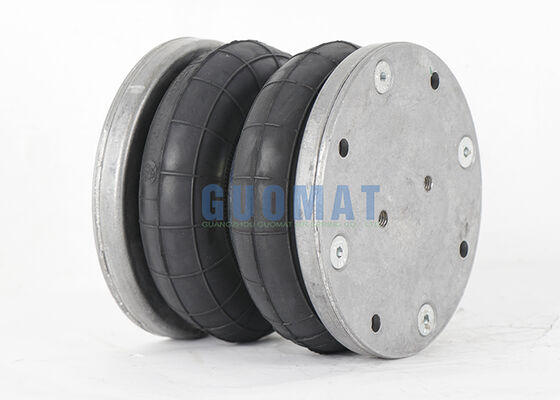

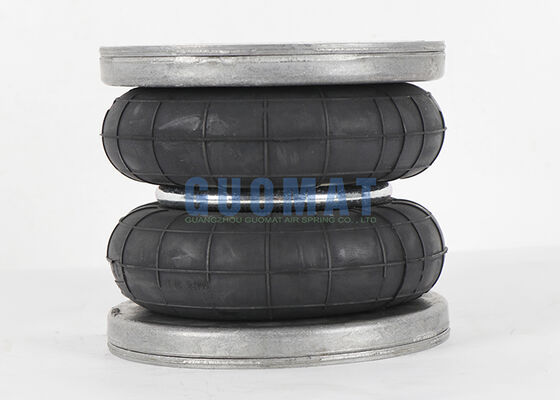

6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption

The 6" x 2 Firestone W01R584070 rubber air spring is a high-performance double convoluted industrial air bellow designed for vibration isolation, load support, and shock absorption in industrial machinery and suspension systems.

The GUOMAT replacement model 2B6X2P is fully compatible with leading OEM part numbers such as Firestone W01-R58-4070, Contitech FD 76-14 DI, and Norgren PM/31062, making it a reliable and cost-effective aftermarket solution for a wide range of equipment applications.

OEM Compatibility

Continental ContiTech: FD 76-14 1/2 M8
Continental ContiTech: FD 76-14 DI G1/2
Continental ContiTech: FD 76-14 DI G1/2 M8
Continental ContiTech: FD 76-14 DI G1/2 CR
Continental ContiTech: FD 76-14 DI CR G1/2
Continental ContiTech: FD 76-14 DI CR /FD76-14DICR /FD7614DICR
Continental ContiTech Bellow: FD 76-14/FD76-14/FD7614
Firestone No.: W01-R58-4070/W01 R58 4070/W01R584070
Firestone Style: 6"x2
Dunlop FR: 6"x2 SP1646 (COMPOSITE)
Dunlop FR: 6"x2 SP2917 (ALUMINIUM)
Dunlop UK (Pneuride): A 3 1330 02 01/A313300201
Norgren: PM/31062/ PM 31062/PM31062
Nominal 0 (inch) x convolutions: 6" x 2/6"x2/6x2

Technical Specifications

Cover plate diameter: 152.5 mm

Threaded holes: M8

Center-to-center distance between threaded holes: 127 mm

Maximum outer diameter: 178 mm

Maximum height: 195 mm

Minimum height: 80 mm

Pressure vs Height Performance Data

Height H (mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	VoI.V(cm³)
75	566	764	942	1139	1318	1507	317
105	493	665	807	967	1133	1282	780
130	406	548	665	800	936	1062	1098
155	314	419	517	616	727	824	1329
195	111	142	191	234	265	310	1549

Applications

Industrial machinery vibration isolation
Press machines and die cushion systems
Conveyor systems and automation equipment
Light truck and trailer suspension systems
Cab suspension systems
Industrial shock absorption platforms
