1B8-550 Goodyear Industrial Isolation System W01-358-7564 Firestone Precision Air Spring

Produktdetails:

Herkunftsort:	China
Markenname:	GUOMAT
Zertifizierung:	ISO/TS16949:2009
Modellnummer:	1B8X4

Zahlung und Versand AGB:

Min Bestellmenge:	6 Stück
Preis:	US$49.9-59.9/PC
Verpackung Informationen:	Stabiler Karton oder nach Kundenwunsch
Lieferzeit:	3-7 Werktage
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit:	1000 Stück/Woche

Kontakt

Ausführliche Produkt-Beschreibung

Artikelname:	Industrielle Luftfeder	Zustand:	Brandneu
Boxabmessungen:	16168cm	Durchmesser der oberen Platte:	135 mm
Luftloch:	1/4 NPTF	Position:	Industriemaschine
Gewicht:	2 kg	Gutes Jahr:	1B8-550
Hervorheben:	Goodyear industrial air spring , Firestone precision air spring , industrial isolation system air spring

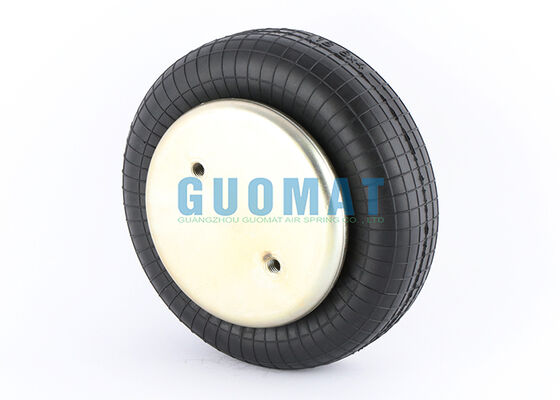

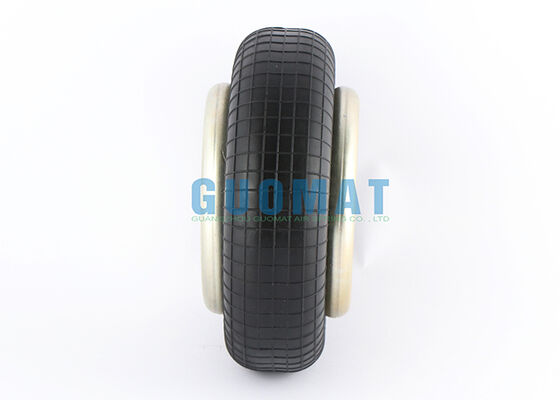

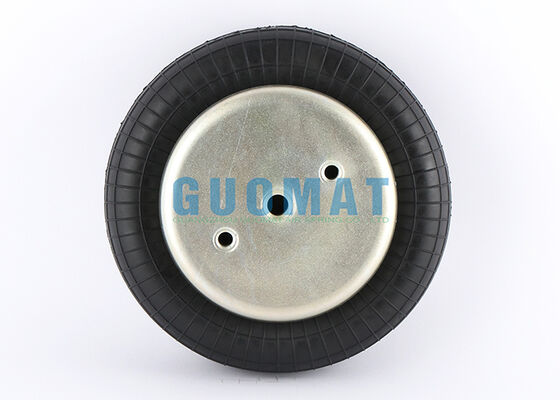

1B8-550 Goodyear Industrial Isolation System W01-358-7564 Firestone Precision Air Spring

The GUOMAT 1B8X4 industrial vibration-isolating air spring is a single-convoluted industrial air actuator designed for shock absorption, vibration isolation, and precision control applications in industrial equipment. Featuring a composite structure of a high-strength rubber bellows and steel end caps, it utilizes compressed air to provide elastic support, effectively reducing vibration, shock, and noise generated during mechanical operation and enhancing equipment stability.

Product Specifications

Brand: GUOMAT

Model Name: Industrial Air Spring

Model No.: 1B8X4

Material: Rubber and Steel

Warranty: 1 Year

Corresponding OEM Numbers

Firestone Numbers:

W01-358-7600 / WO1-358-7600
W01 358 7600 / WO1 358 7600
W013587600 / WO13587600
W01-358-7564 / WO1-358-7564
W01 358 7564 / WO1 358 7564
W013587564 / WO13587564

Goodyear Numbers:

1B8-550
1B 8-550
1B8 550

Contitech Numbers:

FS120-10
FS 120-10
FS 120-10 CI 1/4 NPT

Technical Data

Dimensions

Cover plate diameter: 135mm

Threaded hole: 3/8-16UNC

Air port: 1/4NPTF

Center-to-center distance: 70mm

Maximum outer diameter: 230mm

Performance Data

Pressure P (bar)	3	4	5	6	7	8	Vol.V(I)
Force(Load) (kN)	4.8	6.6	8.2	9.9	11.6	13.3	2
Spring rate (N/mm)	132	170	209	242	277	316
Natural frequency (Hz)	2.7	2.7	2.6	2.6	2.5	2.5

Height vs Pressure Data

Height H (mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol.V(I)
120	4.2	5.6	7.2	8.4	10.2	11.7	2.1
110	4.8	6.6	8.2	9.9	11.6	13.4	2
100	5.6	7.4	9.2	11.2	13.1	15	1.8
90	6	8	10.1	12.2	14.2	16.4	1.6
80	6.5	8.6	10.9	13.2	15.3	17.6	1.4
70	6.8	9.2	11.4	13.8	16.1	18.4	1.3
60	7.1	9.4	12	14.4	16.6	19.2	1.1

Application Areas

Industrial equipment vibration isolation systems
Precision measuring instruments
Experimental testing platforms
Automated production equipment
Machine tool vibration damping systems
Vibration isolation for compressors and pump sets
Vibrating screens and industrial machinery
High-precision machining equipment
