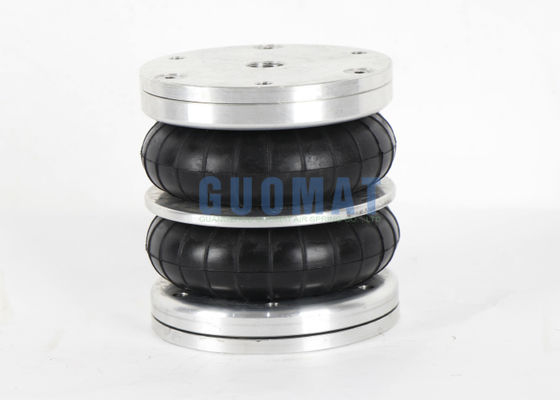

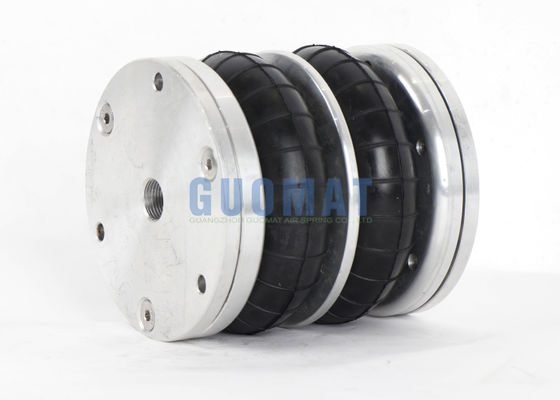

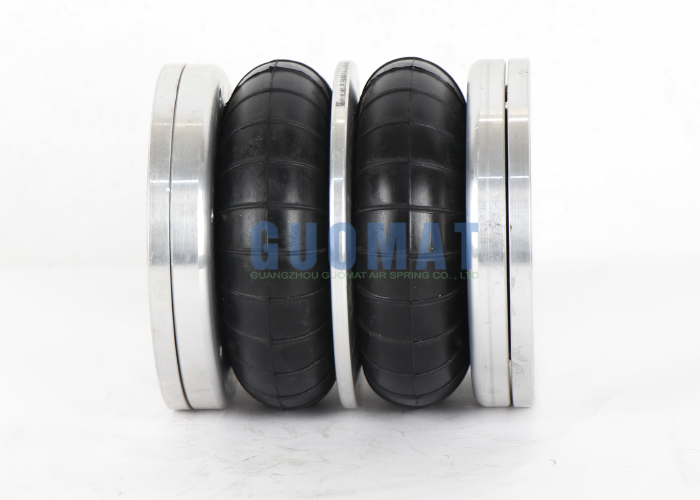

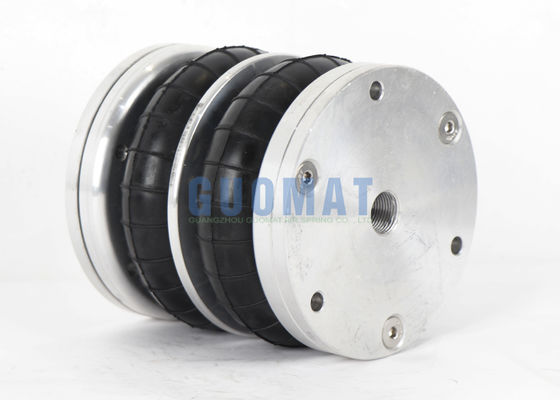

4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring

4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring

  • 4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring
  • 4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring
  • 4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring
  • 4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring
4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring
Produktdetails:
Herkunftsort: Guangzhou, China
Markenname: GUOMAT
Zertifizierung: ISO/Ts16949:2009
Modellnummer: 2B4.5X2P
Zahlung und Versand AGB:
Min Bestellmenge: 6pcs
Preis: $89.9-99.9/pc
Verpackung Informationen: Kartonverpackung oder Verpackung nach Kundenanforderungen
Lieferzeit: 5-8 Arbeitstage
Zahlungsbedingungen: L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 10.000 pro Woche
Kontakt
Ausführliche Produkt-Beschreibung
Produktname: Federung Luftfeder Federmaterial: Naturkautschuk+Aluminiumabdeckung
Qualität: 100 % getestet Garantie: 12 Monate
Farbe: Schwarz Contitech: FD 44-10 di
Konvolutionen: 2 Firestone: W01R584051
Hervorheben:

Firestone suspension air spring

,

double convoluted rubber bellows

,

4 1/2 inch balloon spring

4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring
High-quality air spring designed for heavy duty truck suspension systems, manufactured with rubber and steel components.
Product Specifications
Item Value
Part Number 2B4.5x2P
Type Air Spring
Warranty 12 Months
Truck Model Heavy Duty Truck
Color Black
Place of Origin Guangzhou, China
Certification ISO/TS16949:2009
Material Rubber + Steel
Packing Neutral Packing
MOQ 1 Pcs
Quality High-Quality
Position Auto/Truck parts
Application Auto Suspension Systems
FD 44-10 DI Contitech Air Spring Technical Data
Maximum Height 150mm
Minimum Height 65mm
Cover Diameter 110mm
Number of Threaded Holes (Top Cover) 3
Threaded Hole Size (Top Cover) M6
Number of Threaded Holes (Bottom Cover) 3
Threaded Hole Size (Bottom Cover) M6
Distance Between Threaded Holes 93mm
Maximum Outside Diameter 125mm
Vibration Isolation - Dynamic Characteristic Values
Pressure P (bar) 3 4 5 6 7 8 Vol V(I)
Force(Load) (KN) 1.1 1.5 2 2.4 2.8 3.2 0.7
Spring Rate (N/mm) 44 56 68 80.5 92.5 104
Natural Frequency f0 (Hz) 3.2 3 3 2.9 2.9 2.8
Pneumatic Application - Static Characteristic Values
Pressure P (bar) 3 4 5 6 7 8 Vol V(I)
Height H (mm) 140 0.8 1.14 1.48 1.82 2.18 2.54 0.74
Height H (mm) 120 1.36 1.86 2.37 2.89 3.4 3.93 0.66
Height H (mm) 100 1.82 2.45 3.09 3.73 4.38 5.03 0.54
Height H (mm) 80 2.29 3.06 3.84 4.62 5.41 6.21 0.4
Applications
  • Various applications for the vehicle industry such as steering damping, engine vibration damping, belt tensioning damping for engines and on driver seats in commercial vehicles
  • On household products such as washing machines
  • Special shock absorbers for bicycles
  • On commercial lawn mowers
  • In the medical equipment industry (e.g., on wheelchairs)
4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring 0 4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring 1
