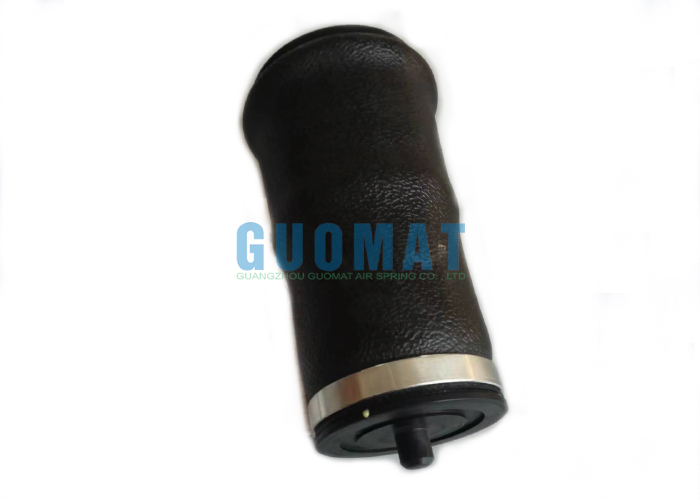

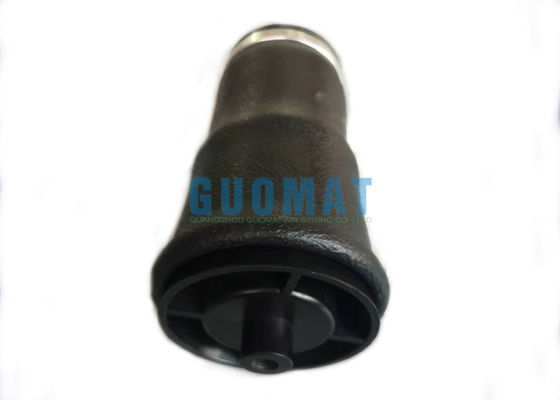

W02-358-7059 Firestone Truck Cab Air Spring W02-N19-7059 Replacement Air Shock

Produktdetails:

Herkunftsort:	Guangdong, China
Markenname:	GUOMAT
Zertifizierung:	ISO/TS16949:2009
Modellnummer:	G7059

Zahlung und Versand AGB:

Min Bestellmenge:	6 PCs
Preis:	$39.9/pc-$49.9/pc
Verpackung Informationen:	starke Kartonbox oder wie Kunden brauchen
Lieferzeit:	2-8 Arbeitstage
Zahlungsbedingungen:	T/T, Western Union, L/C, Paypal, andere Verhandlungen
Versorgungsmaterial-Fähigkeit:	10000pcs/Woche

Kontakt

Ausführliche Produkt-Beschreibung

Elementname:	Kabine Luftfeder	Material:	Plastik
Position:	hinteren	Garantie:	1 Jahr
Paket:	Karton / Palette	Betrieb:	Einfache Installation
Anwendbar für:	LKW	Artikeltyp:	Sitze, Bänke und Accessoires
Hervorheben:	Firestone truck cab air spring , cab air shock absorber replacement , Firestone W02-358-7059 air shock

W02-358-7059 Firestone Truck Cab Air Spring W02-N19-7059 Replacement Air Shock

Product Specifications

Item	Cab Air Shock Absorber
Model Number	G7059
Size	Standard Size
Car Make	For Truck
Position	Rear

OEM Numbers

FIRESTONE W02-358-7059
FIRESTONE W02 358 7059
FIRESTONE W023587059
FIRESTONE Wo2-358-7059
FIRESTONE Wo2 358 7059
FIRESTONE Wo23587059
W02-358-7059 ABSZ70-7059 00125724 7059 32466301 32803501 W02N190759

Technical Data

Maximum Height: 11.7"
Minimum Height: 3.66"
Outer Diameter: 2.9"
Top Cover Diameter: 2.84"
Bottom Piston Diameter: 3.20"
Bottom Piston Height: 3.13"
Air Fitting: 1/8NPT

Installation Instructions

Step 1: Lift & Secure the Cab Use the truck's cab tilt mechanism to fully raise the cab.

THIS IS NON-NEGOTIABLE: Immediately place sturdy support stands or solid wood blocks under the cab's main frame. Never rely solely on the hydraulic lift cylinder. This is your primary safety backup.

Step 2: Replace the Air Spring Release air pressure: Locate and disconnect the air line from the old air spring. You may hear a hiss as pressure escapes.
Remove the old unit: Unbolt the top and bottom mounting bolts. Some wiggling or gentle prying might be needed to free it.
Install the new one: Position the new air spring. Hand-tighten the new mounting bolts to ensure they thread correctly.
Reconnect: Push the air line onto the new air spring's fitting until it clicks and locks securely.

Step 3: Test for Leaks & Final Check Carefully remove the support stands and slowly lower the cab.
Start the engine to inflate the air springs. The cab should rise to its normal height.
Leak Test: Mix soap and water and spray it on the air line connection and the air spring itself. Look for bubbles, which indicate a leak that must be fixed.
Go for a short test drive to ensure stability and listen for unusual noises.

Related Models

W02-358-7076 Max.H 11.25" Min H 2.4"
W02-358-7054 Max.H 13.29" Min H 4.04"
W02-358-7098 Max.H 13.40" Min H 4.00"
W02-358-7040 Max.H 13.56" Min H 4.04"
