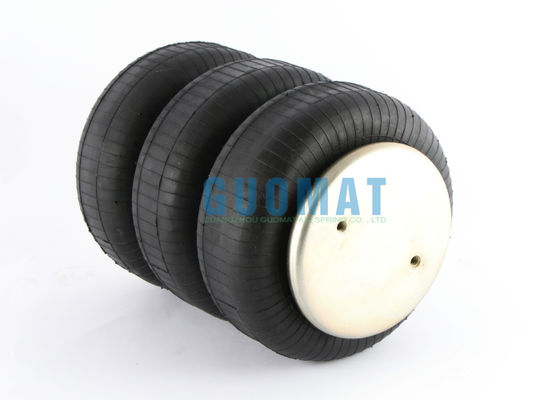

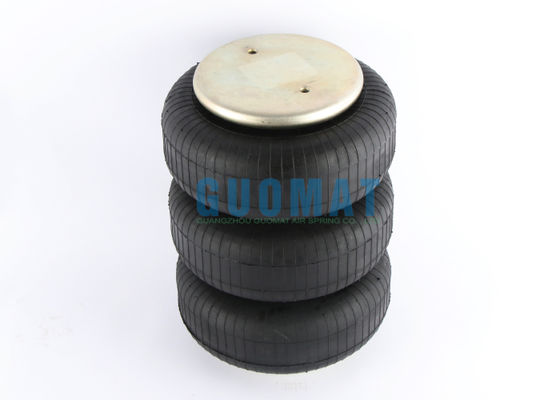

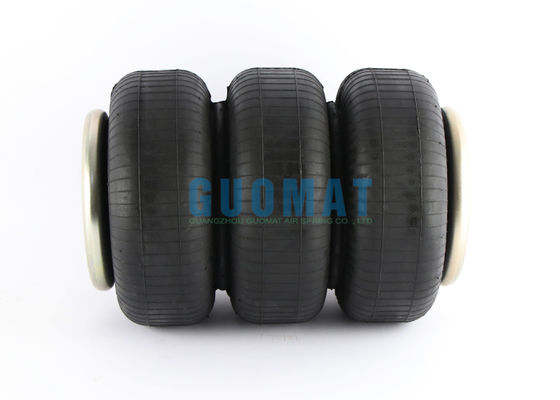

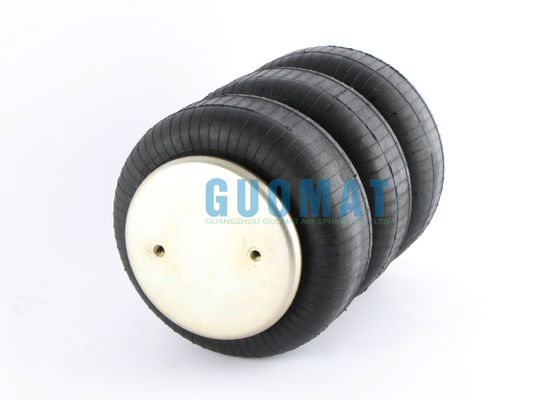

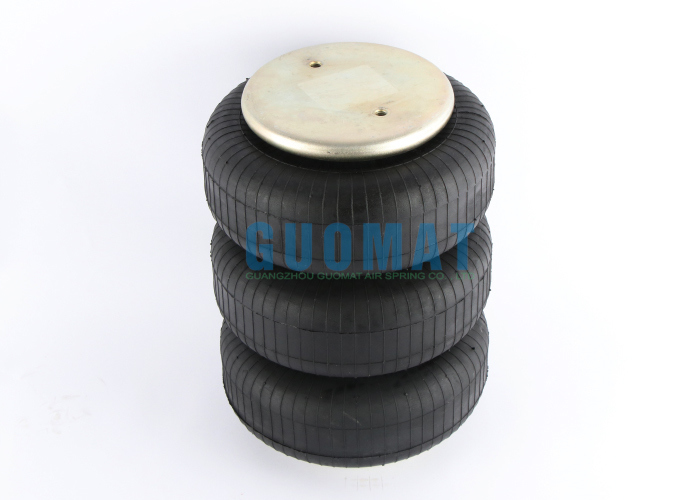

3B12-303 Goodyear Air Bag Spring W01-358-8018 Firestone Suspension Air Shock

3B12-303 Goodyear Air Bag Spring W01-358-8018 Firestone Suspension Air Shock

• Goodyear Part Number: 3B12-303
• Goodyear Part Number: 3B 12-303
• Goodyear Bellows Number: 578-93-3-100
• Goodyear Bellows Number: 578 93 3 100
• Goodyear Bellows Number: 578933100
• Firestone Part Number: 8018
• Firestone Part Number: W01-358-8018
• Firestone Part Number: W01 358 8018
• Firestone Part Number: W013588018
• Firestone Part Number: WO1-358-8018
• Firestone Part Number: WO1 358 8018
• Firestone Part Number: WO13588018
• Contitech Part Number: 64285
• Contitech Part Number: FD330-29 434
• Contitech Part Number: FD 330-29 434

• Top Plate Dia: 9''
• Top Plate C to C Diameter: 6.2''
• Bottom Plate Hole Stud Qyt: 2
• Bottom Plate Dia: 9''
• Bottom Plate C to C Diameter: 6.2''
• Bottom Plate Alignment: Parallel
• Bumper: Yes
• Min Height: 5.1''
• Max Height: 18''

In the commercial vehicle sector, air springs are used for safety, economy, and cargo protection. They have high market penetration in Europe and the United States, and are rapidly gaining popularity in China, driven by relevant regulations.

Application Characteristics: Almost all high-end buses and tourist buses use air suspension systems.

Core Advantages: They significantly improve passenger comfort and reduce fatigue during long journeys.

Application Characteristics: Regulations have mandated the installation of air suspension on the rear axles of heavy-duty trucks, semi-trailers, and tractors, particularly those transporting dangerous goods.

• Automatic Load Leveling: Maintains vehicle leveling regardless of load, ensuring full suspension travel and reducing uneven tire wear.
• Protects Delicate Cargo: Prevents damage to delicate instruments, electronic equipment, or fragile items caused by bumpy roads, reducing the risk of cargo damage.
• Roadworthiness: Effectively controls dynamic wheel loads, minimizing wear on the road surface.
