16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment

16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment

  • 16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
  • 16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
  • 16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
  • 16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
  • 16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
Produktdetails:
Herkunftsort: Guangdong, China
Markenname: GUOMAT
Zertifizierung: ISO/TS16949:2009
Modellnummer: 2B16X2T
Zahlung und Versand AGB:
Min Bestellmenge: 6 Stück
Preis: verhandelbar
Verpackung Informationen: Stabiler Karton oder nach Kundenwunsch
Lieferzeit: 2-8 Werktage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 1000 Stück/Woche
Kontakt
Ausführliche Produkt-Beschreibung
Arbeitstemperatur: -40℃+70℃ Modell: Umwickelte Airbags
Querverweis: Contitech FD 816-30 Sondergarantie: 1 Jahr
Verwendung: Industriell Zahl von Windungen: Doppelt
Gebrüll-Zahl: 16x2 Feuerstein: W01R584067
Hervorheben:

Firestone air spring double convoluted

,

16 inch rubber air spring

,

air bellow for tooling equipment

16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring
Designed for tooling equipment, this double convoluted rubber air spring provides reliable performance and durability.
Product Overview
The GUOMAT 2B16X2T air spring is manufactured with high-quality materials and superior craftsmanship, serving as a complete replacement for the Firestone W01R584067.
This product uses high-toughness natural/synthetic composite rubber and imported cord reinforcement materials, adhering to ISO international quality standards. Fully compatible with the original Firestone W01R584067 in interface dimensions, working stroke, and rated load capacity, making it ideal for bus suspensions, commercial vehicle cab vibration damping, and industrial equipment vibration isolation.
Product Specifications
Product NameFlange Air Spring
BrandGUOMAT
Model No.2B16x2T
Convolutions2
Warranty1 Year
MaterialRubber and Steel
Compatible OEM Numbers
  • Firestone Style: 16''X2, 16X2
  • Firestone Number: W01R584067, W01 R58 4067, W01-R58-4067
  • Dunlop Number: SP1557
  • Contitech Number: FD816-30DS, FD 816-30DS, FD 816-30 DS
  • Norgrem Number: M/31162, M 31162, M31162
  • Parker Number: 9109171
Technical Specifications
Air port inletG1/2
Rec/Max pressure5,5/8 bar
Force(N)@0 bar to H(mm)120(80)
Weight9.70KG
Max. outer diameter440mm
Min. height75mm
Max. height325mm
Recommended height300mm
Dynamic Characteristic Values
Pressure P (bar)246
Force(load)(kN)127025753865
Stiffness(daN/cm)126.0228.0323.0
Natural frequency(hz)1.61.51.4
Vol.V(cm3)242502485025460
H2 rec for isolation(mm)290290290
Product Images

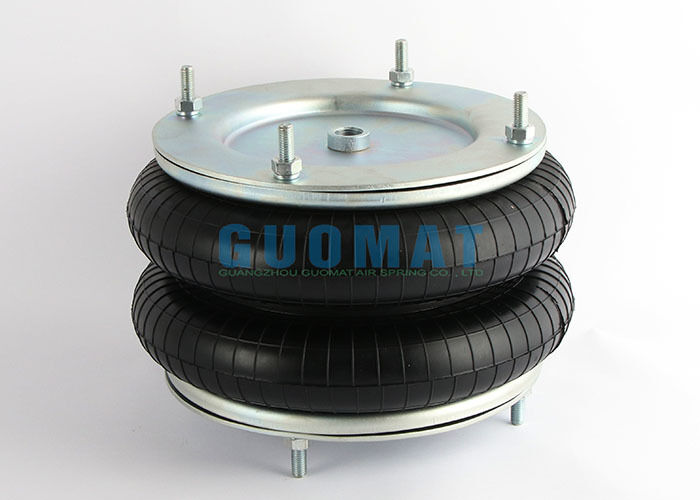

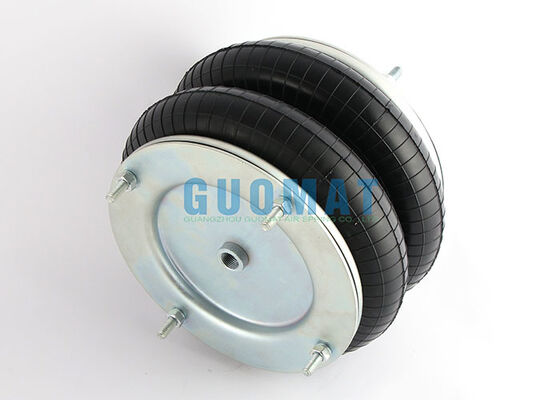

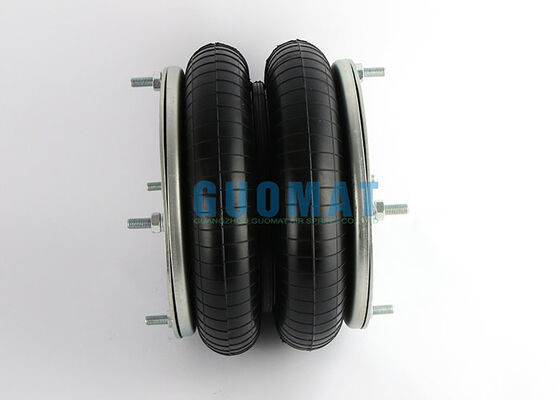

GUOMAT 2B16X2T Air Spring - Front View GUOMAT 2B16X2T Air Spring - Side View

Größe und Tag:

Doppelter gewundener Luft-Frühling,

dreifacher gewundener Luftfrühling,

industrielle Luftfrühlinge
